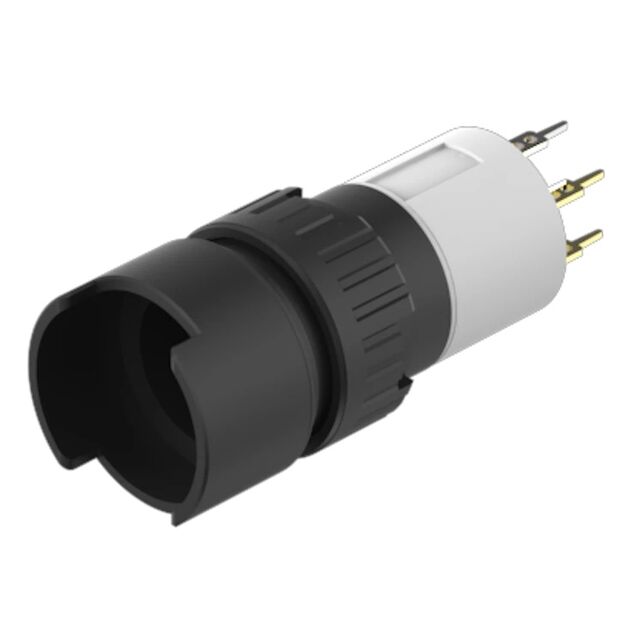

51-433 Series
Manufacturer: EAO
Beta
⌘K
SWITCH PB DPST-NO/NC 0.1A 42V
| Part | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Circuit | Mounting Type | Panel Cutout Dimensions [diameter] | Actuator Marking | Ingress Protection | Termination Style | Actuator Type | Voltage Rating - AC | Voltage Rating - DC | Current Rating (Amps) | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 5000000 Cycles | 55 °C | -25 °C | Off-Mom On-Mom | DPST-NO/NC | Panel Mount Front | 16 mm | No Marking | IP65 - Dust Tight Water Resistant | PC Pin Solder Lug | Button Round | 42 V | 42 V | 100 mA | Standard |
