PTG.M0 Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 8P GOLD SLDR CUP

Part	Shell Material	Backshell Material, Plating	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Cable Opening [custom]	Cable Opening [custom]	Applications	Primary Material	Mounting Feature	Contact Finish - Mating	Shielding	Color	Mounting Type	Orientation	Features	Ingress Protection	Shell Size - Insert	Number of Positions	Connector Type	Fastening Type	Current Rating (Amps)	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Termination
LEMO PTG.M0.8GL.LC65G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M08	8	Receptacle Female Sockets	Detent Lock Push-Pull	5 A
LEMO PTG.M0.4GL.LC65G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M04	4	Receptacle Female Sockets	Detent Lock Push-Pull	8 A
LEMO PTG.M0.8GL.LC52G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)			Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M08	8	Receptacle Female Sockets	Detent Lock Push-Pull	5 A	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PTG.M0.6GL.LC65G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M06	6	Receptacle Female Sockets	Detent Lock Push-Pull	6 A
LEMO PTG.M0.9GL.LC39G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)			Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M09	9	Receptacle Female Sockets	Detent Lock Push-Pull	3 A					2.7 mm	0.154 in	3.9 mm	0.106 in

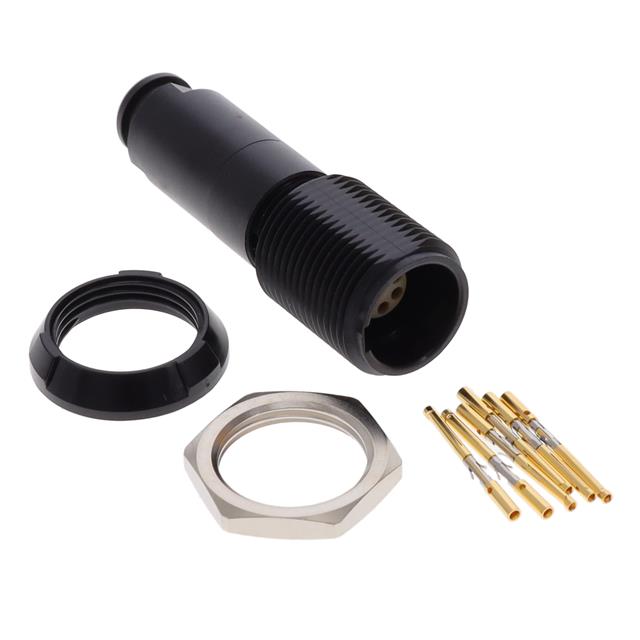

LEMO PTG.M0.6NL.MC65NZ	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Black	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M06	6	Receptacle Female Sockets	Detent Lock Push-Pull	6 A									Crimp
LEMO PTG.M0.6NL.LC52N	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)			Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Black	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M06	6	Receptacle Female Sockets	Detent Lock Push-Pull	6 A	0.157 in	0.205 in	4 mm	5.2 mm
LEMO PTG.M0.9GL.LC65G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M09	9	Receptacle Female Sockets	Detent Lock Push-Pull	3 A

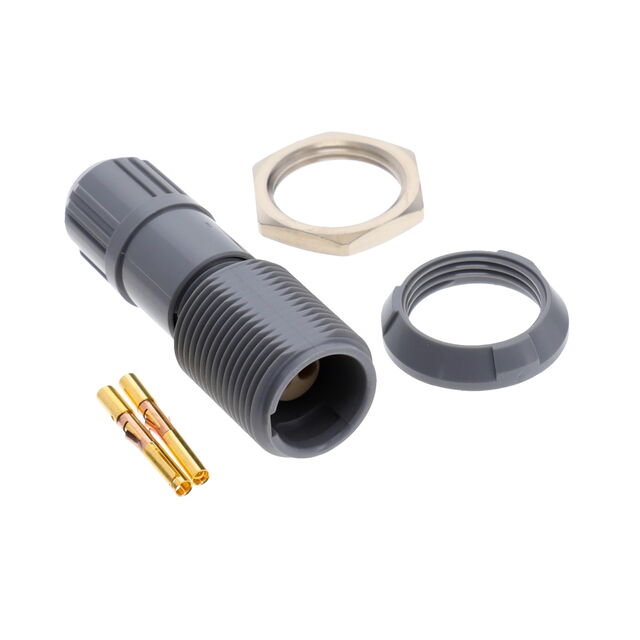

LEMO PTG.M0.2GL.MC65G	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Gray	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M02	2	Receptacle Female Sockets	Detent Lock Push-Pull	10 A									Crimp

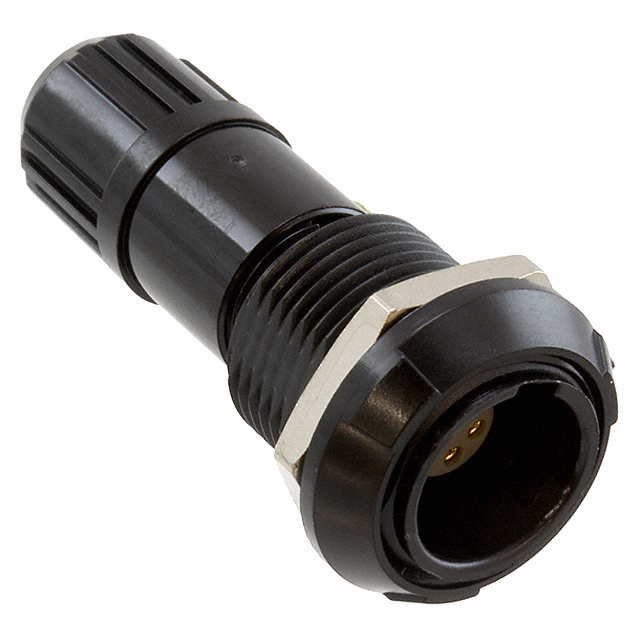

LEMO PTG.M0.6NL.LC65N	Polysulfone (PSU)	Polysulfone (PSU)	150 °C	-50 °C	Polyetheretherketone (PEEK)	0.209 in 0.256 in	5.3 mm 6.5 mm	Automotive Industrial Medical Testing Equipment & Measurement	Plastic	Front and Rear Side Nut	Gold	Unshielded	Black	Free Hanging (In-Line) Panel Mount	G	Backshell	IP50	M06	6	Receptacle Female Sockets	Detent Lock Push-Pull	6 A
