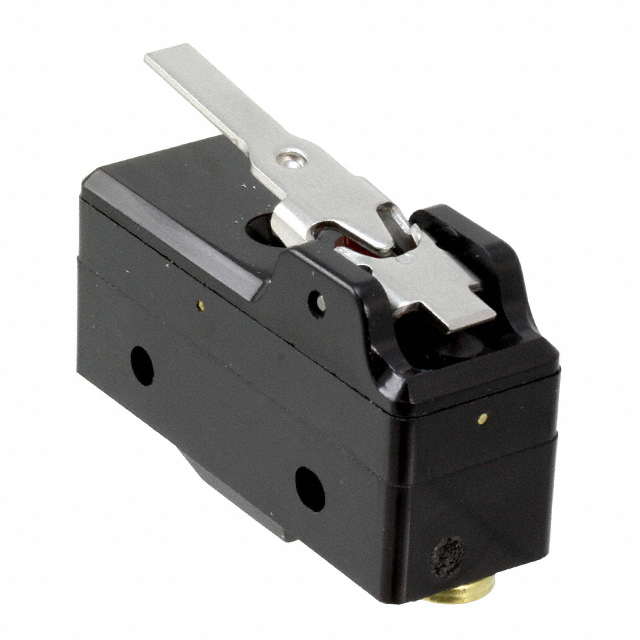

BA-1RV Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 20A 125V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Operating Force | Switch Function | Differential Travel | Differential Travel | Mechanical Life | Voltage Rating - AC | Pretravel | Pretravel | Termination Style | Current Rating (Amps) | Operating Position | Operating Position | Circuit | Voltage Rating - DC | Actuator Type | Release Force | Mounting Type | Overtravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 85 °C | -55 °C | 99 gf | On-Mom | 0.6 mm | 0.025 in | 20000000 Cycles | 125 V | 7.4 mm | 0.29 in | Screw Terminal | 20 A 300 mA | 0.75 " | 19.1 mm | SPDT | 125 VDC | Lever Straight | 28 gf | Chassis Mount | 1.6 mm | 0.062 in |
