M2029SS Series

Catalog

SWITCH TOGGLE DPDT 6A 125V

Part	Actuator Material	Electrical Life	Bushing Thread	Illumination	Circuit	Voltage Rating - AC	Voltage Rating - DC	Termination Style	Actuator Type	Mounting Type	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Actuator Length [x]	Switch Function	Features	Operating Temperature [Max]	Operating Temperature [Min]
NKK Switches M2029SS1W01-BC	Brass Chrome Plated	25000 Steps	1/4-40	Non-Illuminated	DPDT	125 V	30 V	Solder Lug	Standard Round with Cap	Panel Mount	3 A 6 A	6.5 mm	13.5 mm	On-Off-Mom	Red Cap	85 °C	-30 ░C
NKK Switches M2029SS1W01	Brass Chrome Plated	25000 Steps	1/4-40	Non-Illuminated	DPDT	125 V	30 V	Solder Lug	Standard Round	Panel Mount	3 A 6 A	6.5 mm		On-Off-Mom	Epoxy Sealed Terminals	85 °C	-30 ░C

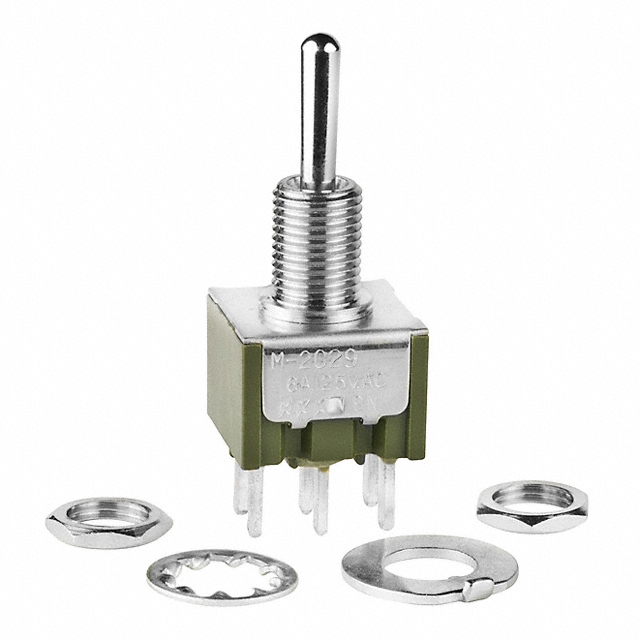

NKK Switches M2029SS1W02	Brass Chrome Plated	25000 Steps	1/4-40	Non-Illuminated	DPDT	125 V	30 V	Quick Connect - 0.062" (1.5mm)	Standard Round	Panel Mount	3 A 6 A	6.5 mm		On-Off-Mom	Epoxy Sealed Terminals	85 °C	-30 ░C

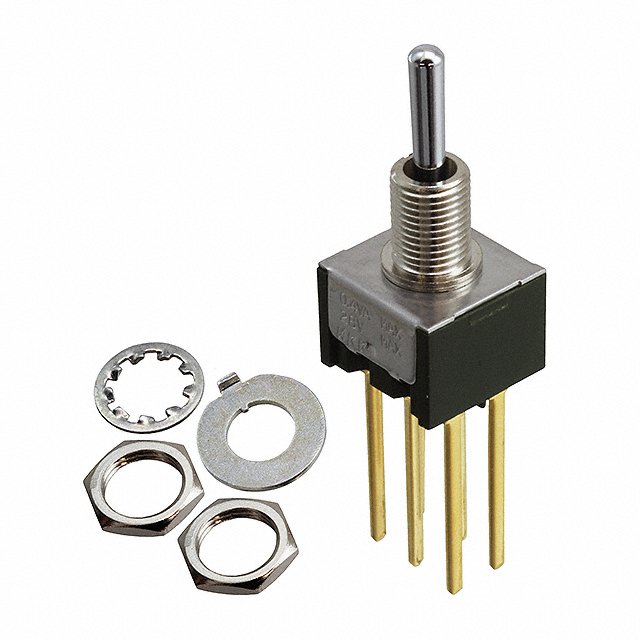

NKK Switches M2029SS1G06	Brass Chrome Plated	50000 Cycles	1/4-40	Non-Illuminated	DPDT	28 V	28 V	Wire Wrap	Standard Round	Panel Mount	0.4 VA	6.5 mm		On-Off-Mom	Epoxy Sealed Terminals	85 °C	-30 ░C
