5000FL Series
Manufacturer: Belden Inc.
Beta
⌘K

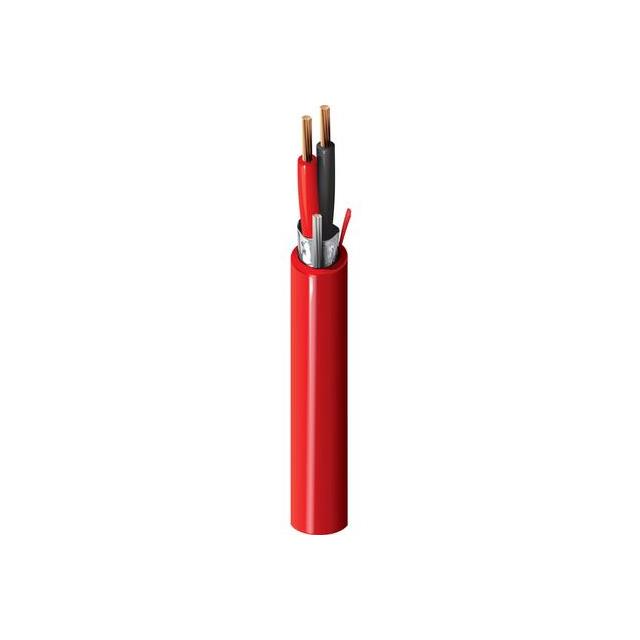

CABLE 2COND 12AWG RED SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Usage | Number of Conductors | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Shield Type | Length | Length | Cable Type | Jacket (Insulation) Material | Jacket Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | Polypropylene (PP) | UL Style FPLR | 19 | 25 AWG | Copper Bare | Alarm Safety | 2 | 0.017 " | 0.432 mm | 300 VDC | 0.264 in | 6.71 mm | 12 AWG | Foil | 304.8 m | 1000 ft | Multi-Conductor | Poly-Vinyl Chloride (PVC) Riser | Red | Drain Wire |
