BZV03/A Series

Catalog

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Connector Type	Material Flammability Rating	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Current Rating - Filter	Approval Agency	Features	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Switch Features	Connector Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Mounting Type	Fuse Holder, Drawer	Filter Type	Termination	Termination	Termination
BULGIN LIMITED BZV03/A0333/05	Receptacle Male Blades - Module	UL94 V-0	10 A	250 VAC	3 A	CSA ENEC UL VDE	Bleed Resistor Surge Protection	0.118 in	3 mm	1 mm	0.039 in	Switch On-Off	IEC 320-C14	34.4 mm	76.5 mm	Panel Mount Snap-In	Twin Fused	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "

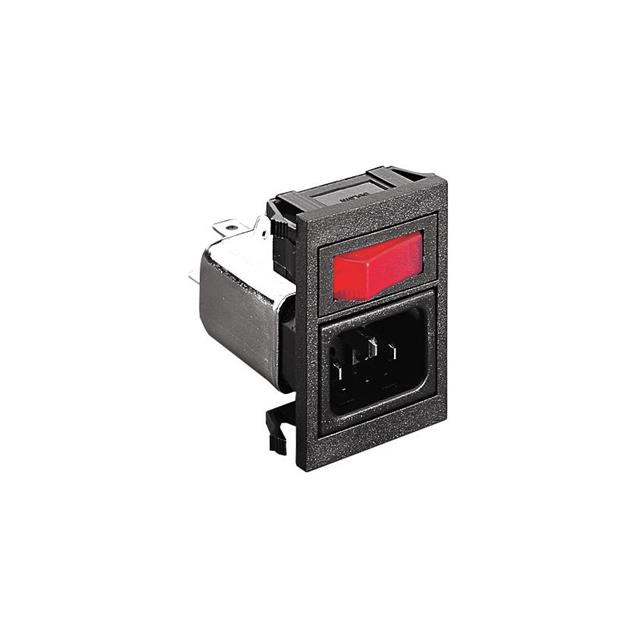

BULGIN LIMITED BZV03/A0620/01	Receptacle Male Blades - Module	UL94 V-0	10 A	250 VAC	6 A	CSA ENEC UL VDE		0.118 in	3 mm	1 mm	0.039 in	Switch On-Off	IEC 320-C14	34.4 mm	48.4 mm	Panel Mount Snap-In		Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "
BULGIN LIMITED BZV03/A0320/06	Receptacle Male Blades - Module	UL94 V-0	10 A	250 VAC	3 A	CSA ENEC UL VDE		0.118 in	3 mm	1 mm	0.039 in	Switch On-Off	IEC 320-C14	34.4 mm	76.5 mm	Panel Mount Snap-In	Twin Fused	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "
BULGIN LIMITED BZV03/A0620/09	Receptacle Male Blades - Module	UL94 V-0	10 A	250 VAC	6 A	CSA ENEC UL VDE		0.118 in	3 mm	1 mm	0.039 in	Switch On-Off	IEC 320-C14	34.4 mm	76.5 mm	Panel Mount Snap-In	Twin Fused	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "
BULGIN LIMITED BZV03/A0633/05	Receptacle Male Blades - Module	UL94 V-0	10 A	250 VAC	6 A	CSA ENEC UL VDE	Bleed Resistor Surge Protection	0.118 in	3 mm	1 mm	0.039 in	Switch On-Off	IEC 320-C14	34.4 mm	76.5 mm	Panel Mount Snap-In	Twin Fused	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "
BULGIN LIMITED BZV03/A0620/15	Receptacle Male Blades - Module	UL94 V-0	10 A	250 VAC	6 A	CSA ENEC UL VDE	Voltage Selector	0.118 in	3 mm	1 mm	0.039 in	Switch On-Off	IEC 320-C14	34.4 mm	76.5 mm	Panel Mount Snap-In	Twin Fused	Filtered (EMI RFI) - Commercial	6.3 mm	Quick Connect	0.25 "
