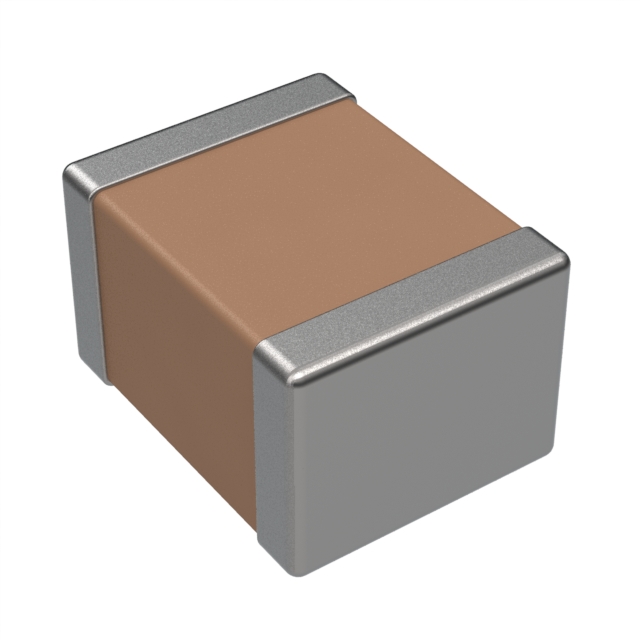

C1210J Series

Manufacturer: KEMET

Catalog

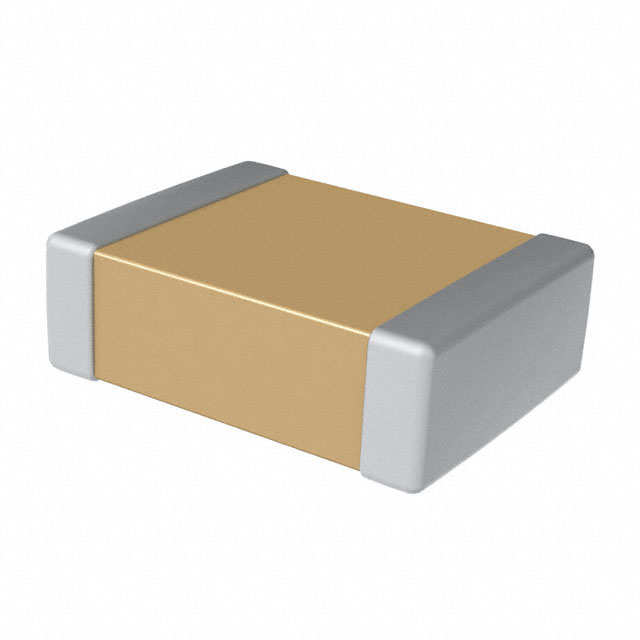

CAP CER 0.1UF 200V X7R 1210

Part	Operating Temperature [Min]	Operating Temperature [Max]	Temperature Coefficient	Features	Voltage - Rated	Capacitance	Applications	Ratings	Mounting Type	Package / Case	Package / Case	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Thickness (Max) [Max]	Thickness (Max) [Max]
KEMET C1210J104K2RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	200 VDC	100000 pF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	1.45 mm	0.057 "
KEMET C1210J474K1RAC7800	-55 C	125 °C	X7R	Open Mode Soft Termination	100 V	0.47 µF	Boardflex Sensitive		MLCC Surface Mount	1210	3225 Metric	10 %	2.5 mm	0.126 "	0.098 in	3.2 mm	2.05 mm	0.081 in
KEMET C1210J474K5RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	50 VDC	0.47 µF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	1.45 mm	0.057 "
KEMET C1210J225K3RAC7800	-55 C	125 °C	X7R	Open Mode Soft Termination	25 VDC	2.2 µF	Boardflex Sensitive		MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	1.9 mm	0.075 in
KEMET C1210J105K5RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	50 VDC	1 µF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	2.05 mm	0.081 in
KEMET C1210J104K5RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	50 VDC	100000 pF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	1.15 mm	0.045 in
KEMET C1210J474K1RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	100 V	0.47 µF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.5 mm	0.126 "	0.098 in	3.2 mm	2.05 mm	0.081 in
KEMET C1210J224K5RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	50 VDC	0.22 µF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	1.15 mm	0.045 in
KEMET C1210J105K1RACAUTO	-55 C	125 °C	X7R	Open Mode Soft Termination	100 V	1 µF	Automotive Boardflex Sensitive	AEC-Q200	MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	2.8 mm	0.11 in
KEMET C1210J334K5RAC7800	-55 C	125 °C	X7R	Open Mode Soft Termination	50 VDC	0.33 µF	Boardflex Sensitive		MLCC Surface Mount	1210	3225 Metric	10 %	2.6 mm	0.13 "	0.102 in	3.3 mm	1.15 mm	0.045 in
