1744416 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

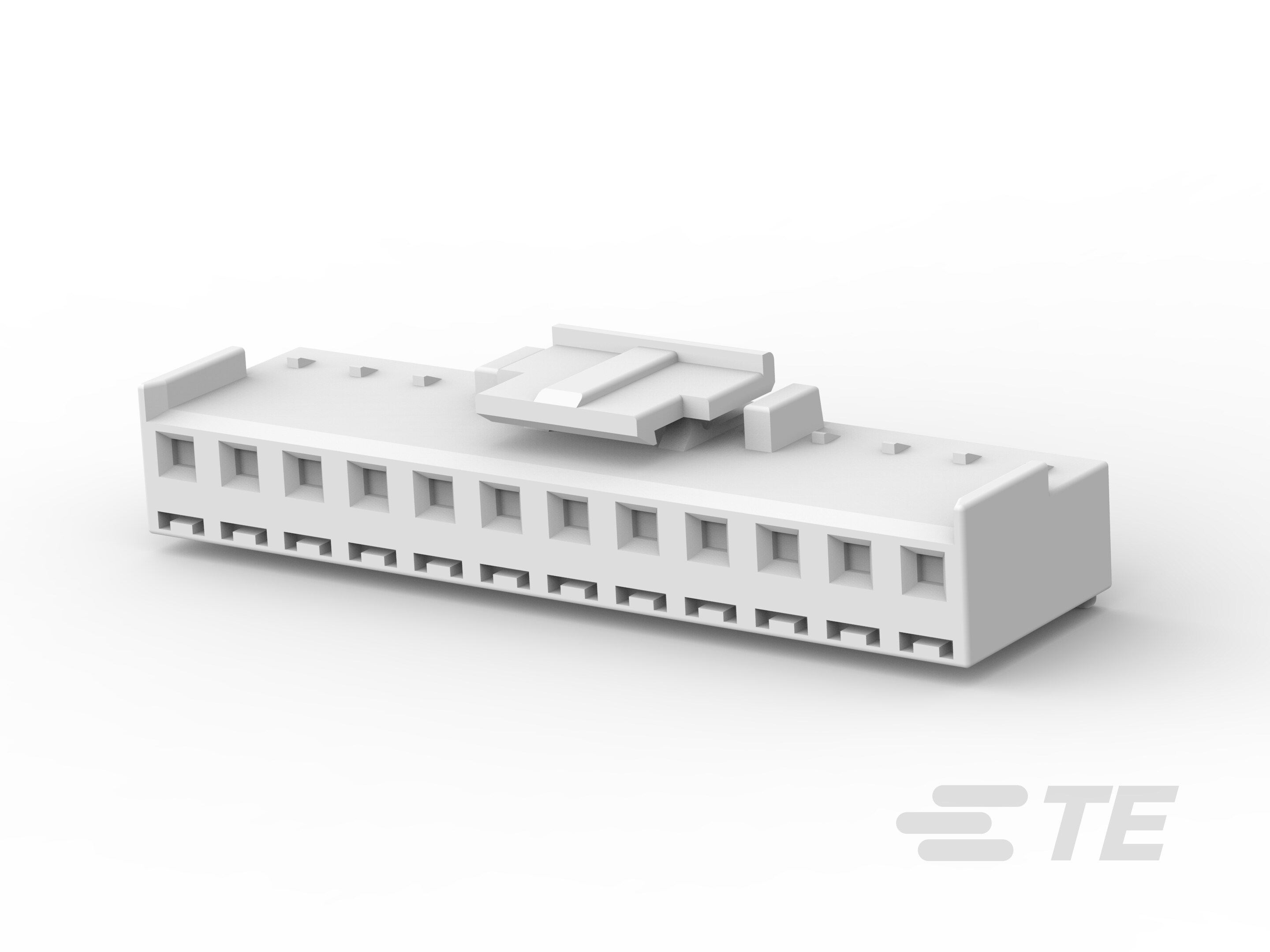

12 POS EP II HSG, GLOW WIRE
| Part | Note | Pitch | Pitch | Mounting Type | Insulation Material | Color | Number of Positions | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Type | Number of Rows | Contact Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Contacts Not Included | 3.96 mm | 0.156 in | Free Hanging (In-Line) | Nylon Polyamide (PA) | Natural | 12 | Crimp | -55 C | 105 ░C | Receptacle | 1 | Female Socket | Latch Lock |
 TE Connectivity AMP Connectors | Contacts Not Included | 3.96 mm | 0.156 in | Free Hanging (In-Line) | Nylon Polyamide (PA) | Natural | 10 | Crimp | -55 C | 105 ░C | Receptacle | 1 | Female Socket | Latch Lock |
 TE Connectivity AMP Connectors | Contacts Not Included | 3.96 mm | 0.156 in | Free Hanging (In-Line) | Nylon Polyamide (PA) | Natural | 2 | Crimp | -55 C | 105 ░C | Receptacle | 1 | Female Socket | Latch Lock |
 TE Connectivity AMP Connectors | Contacts Not Included | 3.96 mm | 0.156 in | Free Hanging (In-Line) | Nylon Polyamide (PA) | Natural | 9 | Crimp | -55 C | 105 ░C | Receptacle | 1 | Female Socket | Latch Lock |
 TE Connectivity AMP Connectors | Contacts Not Included | 3.96 mm | 0.156 in | Free Hanging (In-Line) | Nylon Polyamide (PA) | Natural | 8 | Crimp | -55 C | 105 ░C | Receptacle | 1 | Female Socket | Latch Lock |
