MOP-AL204 Series

Catalog

LCD MODULE 80 DIG 20 X 4

Part	Display Format [x]	Display Format [y]	Text Color	Interface	Display Type	Operating Temperature [Max]	Operating Temperature [Min]	Background Color	Viewing Area [y]	Viewing Area [x]	Number of Characters	Character Format [x]	Character Format [y]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Character Size [y]	Character Size [z]	Character Format	Dot Size [y]	Dot Size [x]	Display Mode	Backlight	Voltage - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]	Background Color [custom]
Matrix Orbital MOP-AL204A-BBTW-25E-3IN	20	4	White	I2C RS-232 TTL	LCD - Monochrome	50 °C	0 °C	Blue	20.8 mm	70.4 mm	80	5 Dots	8 Dots	60 mm	15 mm	98 mm
Matrix Orbital MOP-AL204A-BTTY-25E-3IN	20	4	Yellow/Green	I2C RS-232 TTL	LCD - Monochrome	50 °C	0 °C	Black	20.8 mm	70.4 mm	80	5 Dots	8 Dots	60 mm	15 mm	98 mm
Matrix Orbital MOP-AL204B-BYFY-25E-3IN	20	2	Black		Alphanumeric	70 °C	-20 ░C	Yellow/Green	43 mm	123.5 mm	80			62.5 mm	13 mm	146 mm	4.84 mm	9.22 mm	5 x 8 Dots w/Cursor	1.1 mm	0.92 mm	Transflective	LED - Yellow	5.5 V

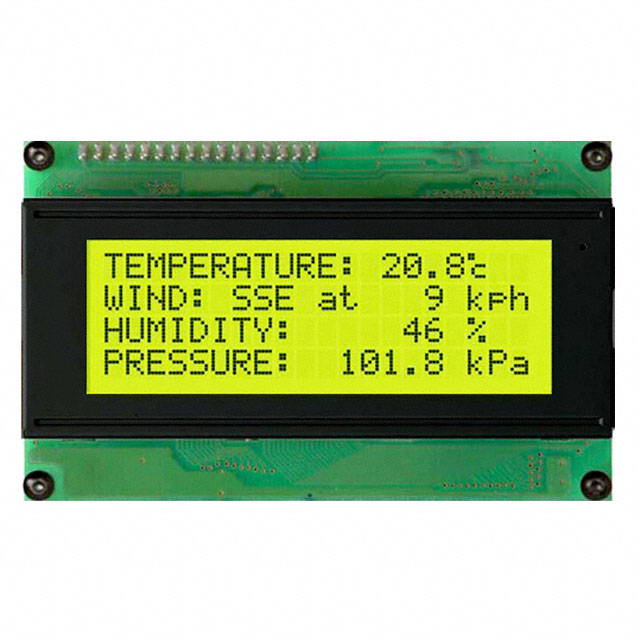

Matrix Orbital MOP-AL204A-BYFY-25E-3IN	20	4	Gray	Parallel	STN - Super-Twisted Nematic	70 °C	-20 ░C	Green	25.2 mm	76 mm	80	5 Dots	8 Dots	60 mm	15 mm	98 mm				0.55 mm	0.55 mm	Transflective			5.5 V	4.5 V
Matrix Orbital MOP-AL204A-BBTR-25E-3IN	20	4	Red	I2C RS-232 TTL	LCD - Monochrome	50 °C	0 °C	Black	20.8 mm	70.4 mm	80	5 Dots	8 Dots	60 mm	15 mm	98 mm
Matrix Orbital MOP-AL204A-BGFW-25E-3IN	20	4	Blue	I2C RS-232 TTL	LCD - Monochrome	50 °C	0 °C		20.8 mm	70.4 mm	80	5 Dots	8 Dots	60 mm	15 mm	98 mm											Gray White
