284410 Series

Catalog

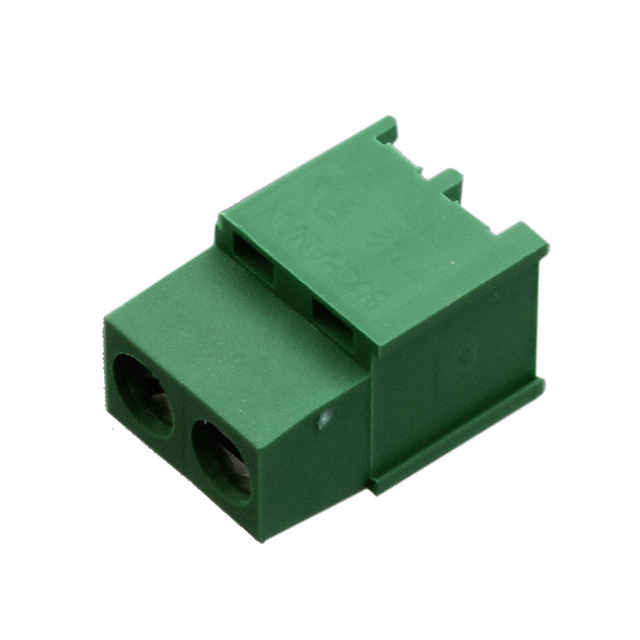

TERM BLK 2POS BOTTOM ENT 5MM PCB

Part	Mating Orientation	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Current	Wire Termination	Positions Per Level	Screw Thread	Color	Features	Number of Levels	Pitch [x]	Pitch [x]	Torque - Screw	Torque - Screw	Voltage	Screw Material - Plating	Clamp Material - Plating	Contact Material - Plating [custom]
TE Connectivity Raychem Cable Protection 284410-2	Vertical with Board Bottom Entry	30 AWG	12 AWG	Through Hole	17.5 A	Screw - Rising Cage Clamp	2	M3	Green	Interlocking (Side)	1	5 mm	0.197 in	0.79 Nm	7 Lb-In	300 V	Brass - Nickel Plated	Brass - Nickel Plated	Brass - Tin Plated
