ISL81601 Series

Catalog

60V BIDIRECTIONAL 4-SWITCH SYNCHRONOUS BUCK-BOOST CONTROLLER

Part	Function	Output Configuration	Output Phases	Package / Case	Output Type	Number of Outputs	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Topology	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Switching [Min]	Frequency - Switching [Max]	Control Features	Current - Output	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Main Purpose	Outputs and Type	Outputs and Type	Voltage - Output	Regulator Topology	Frequency - Switching	Supplied Contents
Renesas Electronics Corporation ISL81601FRZ-T	Step-Up/Step-Down	Positive	2	32-VFQFN Exposed Pad	PWM Signal	1	Surface Mount	4.5 V	60 V	Buck-Boost	32-QFN (5x5)	-40 °C	125 °C	90 kHz	650 kHz	Current Limit Enable Power Good
Renesas Electronics Corporation ISL81601FRZ	Step-Up/Step-Down	Positive	2	32-VFQFN Exposed Pad	PWM Signal	1	Surface Mount	4.5 V	60 V	Buck-Boost	32-QFN (5x5)	-40 °C	125 °C	90 kHz	650 kHz	Current Limit Enable Power Good
Renesas Electronics Corporation ISL81601FVEZ	Step-Up/Step-Down	Positive	2	38-TFSOP	PWM Signal	1	Surface Mount	4.5 V	60 V	Buck-Boost	38-HTSSOP	-40 °C	125 °C	90 kHz	650 kHz	Current Limit Enable Power Good

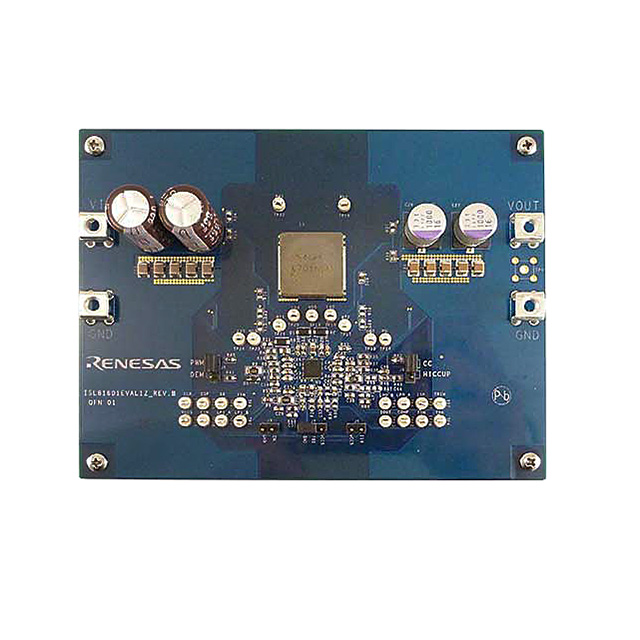

Renesas Electronics Corporation ISL81601EVAL1Z																	10 A	ISL81601	60 V	9 VDC	Fully Populated	DC/DC Step Up or Down	Non-Isolated	1	12 V	Buck-Boost	200 kHz	Board(s)
Renesas Electronics Corporation ISL81601FRZ-T7A	Step-Up/Step-Down	Positive	2	32-VFQFN Exposed Pad	PWM Signal	1	Surface Mount	4.5 V	60 V	Buck-Boost	32-QFN (5x5)	-40 °C	125 °C	90 kHz	650 kHz	Current Limit Enable Power Good
