V7-3A1 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K

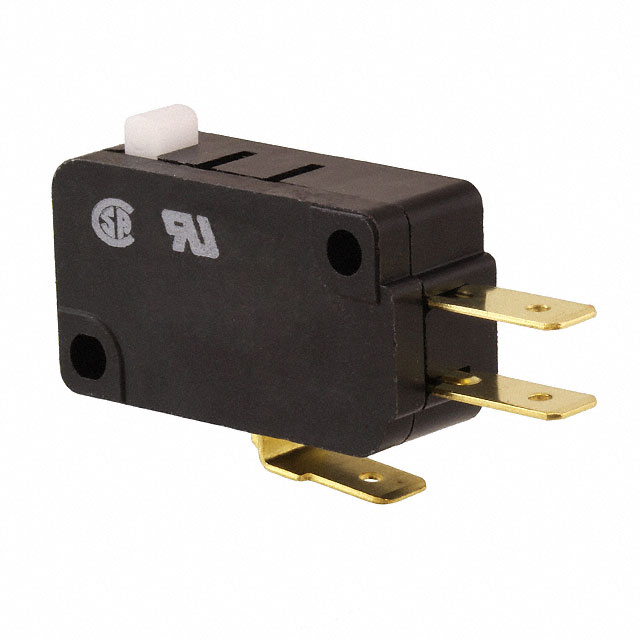

SWITCH SNAP ACTION SPDT 5A 125V
| Part | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Operating Force | Circuit | Release Force | Operating Position | Operating Position | Actuator Type | Mechanical Life | Voltage Rating - AC | Current Rating (Amps) | Electrical Life | Overtravel [custom] | Overtravel [custom] | Pretravel | Pretravel | Switch Function | Differential Travel [x] | Differential Travel [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Quick Connect | 85 °C | -40 C | Chassis Mount | 60 gf | SPDT | 11 gf | 14.7 mm | 0.579 in | Round (Pin Plunger) | 10000000 Cycles | 125 V | 5 A | 100000 Cycles | 1.27 mm | 0.05 " | 1.2 mm | 0.047 in | On-Mom | ||
 Honeywell Sensing and Productivity Solutions | Quick Connect | 85 °C | -40 C | Chassis Mount | 50 gf | SPDT | 14.7 mm | 0.579 in | Round (Pin Plunger) | 10000000 Cycles | 125 V | 5 A | 100000 Cycles | 1.27 mm | 0.05 " | 1.2 mm | 0.047 in | On-Mom | 0.01 in | 0.25 mm |
