AWG28-16 Series

Catalog

CBL RIBN 16COND 0.05 MULT 100'

Part	Conductor Material	First Conductor Mark	Insulation Resistance	Length	Length	Wire Gauge	Ribbon Width [custom]	Ribbon Width [custom]	Length	Voltage	Conductor Strand [custom]	Conductor Strand [custom]	Length [x]	Length [x]	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Jacket Color	Shielding	Number of Conductors	Operating Temperature	Pitch	Pitch	Ratings	Cable Type	Spool Size [x]	Spool Size [x]	Operating Temperature [Min]	Operating Temperature [Max]

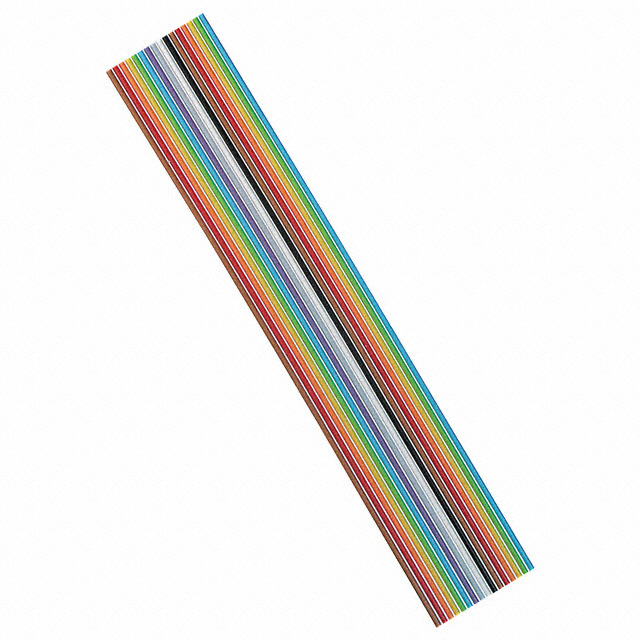

Assmann WSW Components AWG28-16/F/300	Copper Tinned	Red	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	20.32 mm	0.8 in	Enter Number of Feet in Order Quantity	300 VDC	36 AWG	7 Strands	50 ft	15.24 m	0.89 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Multiple	Unshielded	16	105 C	0.05 in	1.27 mm	UL Style 2651	Flat Cable

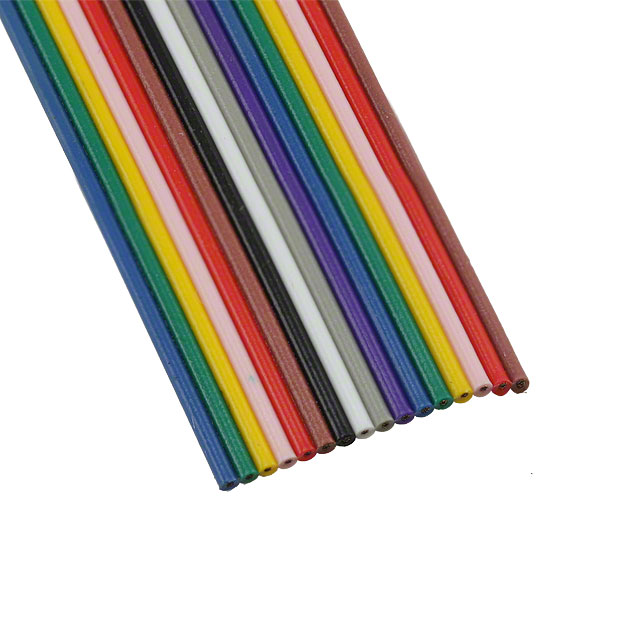

Assmann WSW Components AWG28-16/F-1/300	Copper Tinned		100 MOhms	91440 mm	3600 in	28 AWG	16 mm	0.63 in	Enter Number of Feet in Order Quantity	300 VDC	36 AWG	7 Strands			0.89 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Multiple	Unshielded	16		0.039 in	1 mm	UL Style 2651	Flat Cable	300 ft	91.44 m	-10 °C	105 ░C

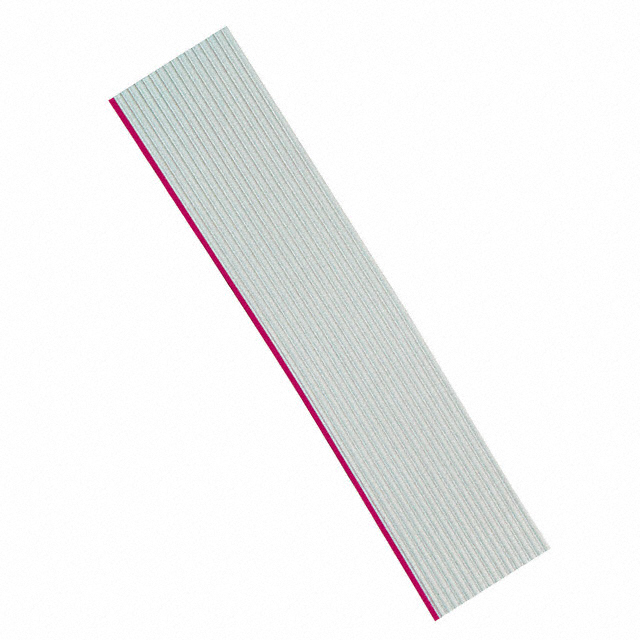

Assmann WSW Components AWG28-16/G/300	Copper Tinned	Red	100 MOhms	3.05 m 7.62 m 30.48 m 91440 mm	10 ft 25 ft 100 ' 3600 in	28 AWG	20.32 mm	0.8 in		300 VDC	36 AWG	7 Strands	50 ft	15.24 m	0.89 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Gray	Unshielded	16		0.05 in	1.27 mm	UL Style 2651	Flat Cable			-10 °C	105 ░C

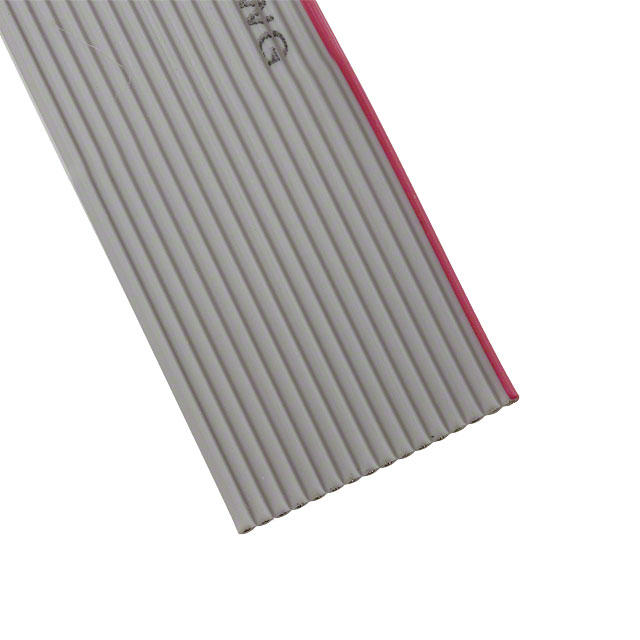

Assmann WSW Components AWG28-16/G-1/300	Copper Tinned	Red	100 MOhms	91440 mm	3600 in	28 AWG	16 mm	0.63 in	Enter Number of Feet in Order Quantity	300 VDC	36 AWG	7 Strands			0.89 mm	0.035 in	Poly-Vinyl Chloride (PVC)	Gray	Unshielded	16		0.039 in	1 mm	UL Style 2651	Flat Cable	300 ft	91.44 m	-10 °C	105 ░C
