842-049 Series

Manufacturer: EDAC Inc.

Catalog

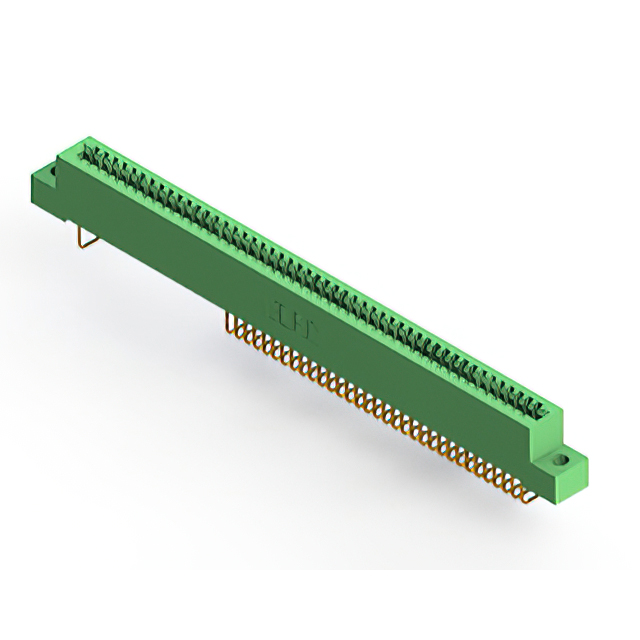

CONN EDGE SINGLE FML 49POS 0.100

Part	Contact Finish Thickness	Contact Finish Thickness	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Flange Feature	Gender	Material - Insulation	Contact Material	Termination Rows	Contact Finish	Contact Type	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Number of Rows	Card Type	Mounting Type	Color	Number of Positions	Number of Positions/Bay/Row	Termination	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 842-049-524-108	0.25 Ám	10 Áin	125 °C	-40 C	Single	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Solder
EDAC Inc. 842-049-520-107	0.25 Ám	10 Áin	125 °C	-40 C	Single	Flush Mount M3 Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Solder
EDAC Inc. 842-049-542-107	0.25 Ám	10 Áin	125 °C	-40 C	Single	Flush Mount M3 Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Wire Wrap
EDAC Inc. 842-049-540-103	0.25 Ám	10 Áin	125 °C	-40 C	Single	Floating Bobbin Flush Mount	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Wire Wrap	0.116 "	2.95 mm
EDAC Inc. 842-049-500-108	0.25 Ám	10 Áin	125 °C	-40 C	Single	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Solder Eyelet(s)
EDAC Inc. 842-049-558-108	0.25 Ám	10 Áin	125 °C	-40 C	Single	4-40 Flush Mount Threaded Insert Top Opening	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Right Angle Through Hole	Green	49	49	Solder
EDAC Inc. 842-049-540-101	0.25 Ám	10 Áin	125 °C	-40 C	Single		Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Wire Wrap
EDAC Inc. 842-049-542-101	0.25 Ám	10 Áin	125 °C	-40 C	Single		Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Wire Wrap
EDAC Inc. 842-049-544-103	0.25 Ám	10 Áin	125 °C	-40 C	Single	Floating Bobbin Flush Mount	Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Wire Wrap	0.116 "	2.95 mm
EDAC Inc. 842-049-523-101	0.25 Ám	10 Áin	125 °C	-40 C	Single		Female	Diallyl Phthalate (DAP)	Copper Alloy	1	Gold	Cantilever	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	1	Non Specified - Single Edge	Through Hole	Green	49	49	Solder
