P2300Q12ALRP Series

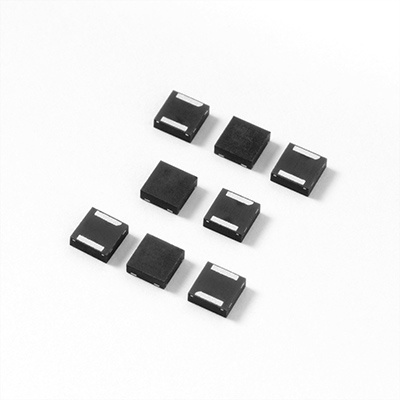

SIDACtor? Bi 190V 100A QFN 3X3 2L RoHS

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

SIDACtor? Bi 190V 100A QFN 3X3 2L RoHS

Part	Voltage - On State	Current - Hold (Ih)	Mounting Type	Capacitance	Number of Elements	Current - Peak Pulse (10/1000µs)	Voltage - Breakover	Voltage - Off State	Package / Case	Package / Case	Current - Peak Pulse (8/20µs)	Supplier Device Package
Littelfuse/Commercial Vehicle Products P2300ECMC	4 V	150 mA	Through Hole	50 pF	1	100 A	260 V	190 V	TO-226-2 TO-92-2	TO-226AC	400 A	TO-92-3
Littelfuse/Commercial Vehicle Products P2300Q12ALRP	5 V	150 mA	Surface Mount	35 pF	1	45 A	260 V	190 V	2-TDFN		150 A	2-QFN (3x3)
Littelfuse/Commercial Vehicle Products P2300SB	4 V	150 mA	Surface Mount	50 pF	1	80 A	260 V	190 V	DO-214AA SMB		250 A	DO-214AA
Littelfuse/Commercial Vehicle Products P2300SD	4 V	50 mA	Surface Mount	80 pF	1	200 A	260 V	190 V	DO-214AA SMB			DO-214AA
Littelfuse/Commercial Vehicle Products P2300SCLRP	4 V	150 mA	Surface Mount	80 pF	1	100 A	260 V	190 V	DO-214AA SMB		400 A	DO-214AA
Littelfuse/Commercial Vehicle Products P2300Q12BLRP	5 V	150 mA	Surface Mount	35 pF	1	80 A	260 V	190 V	2-TDFN		250 A	2-QFN (3x3)
Littelfuse/Commercial Vehicle Products P2300SBLRP	4 V	150 mA	Surface Mount	50 pF	1	80 A	260 V	190 V	DO-214AA SMB		250 A	DO-214AA
Littelfuse/Commercial Vehicle Products P2300EALRP1	4 V	150 mA	Through Hole	35 pF	1	45 A	260 V	190 V	TO-226-2 TO-92-2	TO-226AC	150 A	TO-92-3
Littelfuse/Commercial Vehicle Products P2300ECMCAP	4 V	150 mA	Through Hole	50 pF	1	100 A	260 V	190 V	TO-226-2 TO-92-2		400 A	TO-92-2
Littelfuse/Commercial Vehicle Products P2300EBRP1	4 V	150 mA	Through Hole	50 pF	1	80 A	260 V	190 V	TO-226-2 TO-92-2	TO-226AC	250 A	TO-92-3

Catalog

SIDACtor? Bi 190V 100A QFN 3X3 2L RoHS

Key Features

• RoHS compliant

• Chip Scale Package (CSP) sizing

• Wide range of IPP ratings including:

• 75 A for 5x310/10x700µs ITU/YDT waveform

• 80 A for 10x1000µs GR 1089 waveform

• 100 A for 10x560µs TIA-968

• Bidirectional transient voltage protection

• Small footprint (QFN)

• Teccor® brand SIDACtor® technology

• Recognized under UL E133083 file number

Description
