TFLM Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 40A 32VAC 32VDC

Part	Mounting Type	Package / Case	Response Time	Approval Agency	Breaking Capacity @ Rated Voltage	Voltage Rating - AC	Voltage Rating - DC	Fuse Type	Current Rating (Amps)	Color	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]

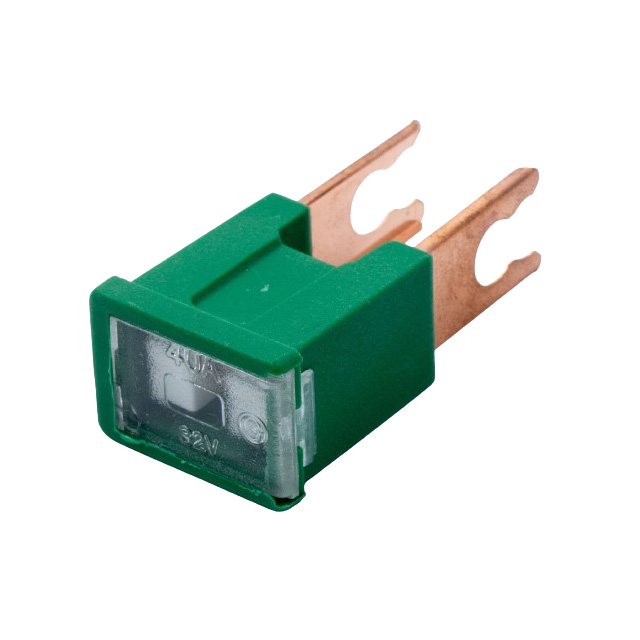

OptiFuse TFLM-40A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	40 A	Green	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "

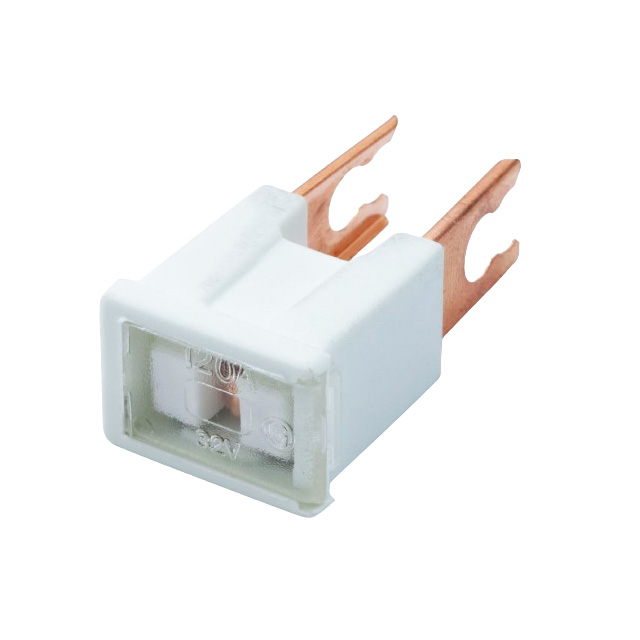

OptiFuse TFLM-120A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	120 A	White	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "

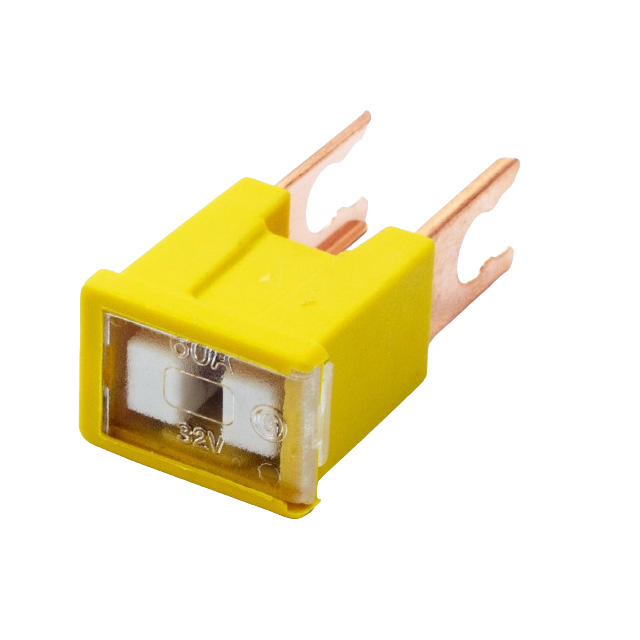

OptiFuse TFLM-60A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	60 A	Yellow	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "

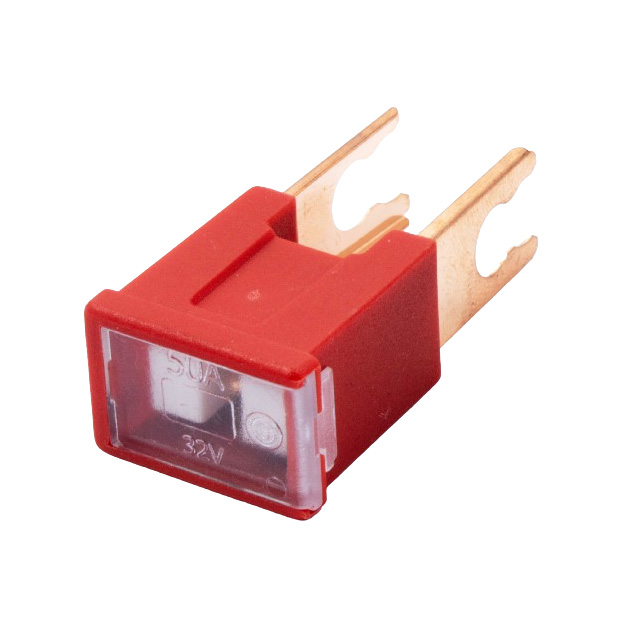

OptiFuse TFLM-50A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	50 A	Red	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "

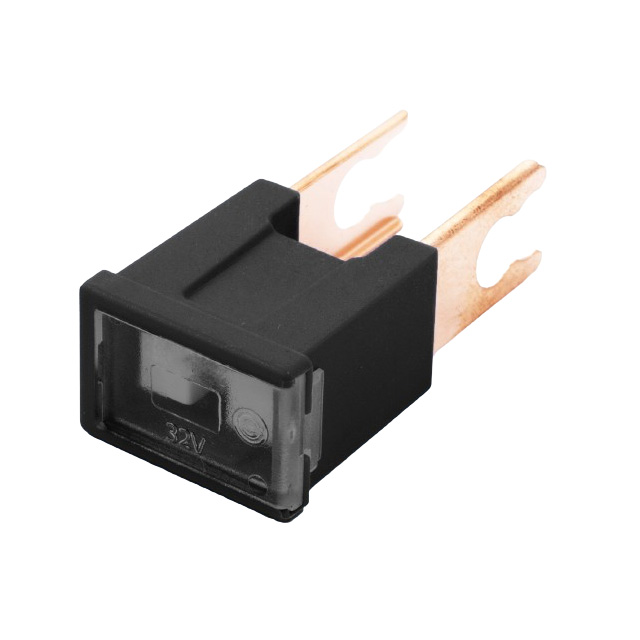

OptiFuse TFLM-80A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	80 A	Black	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "

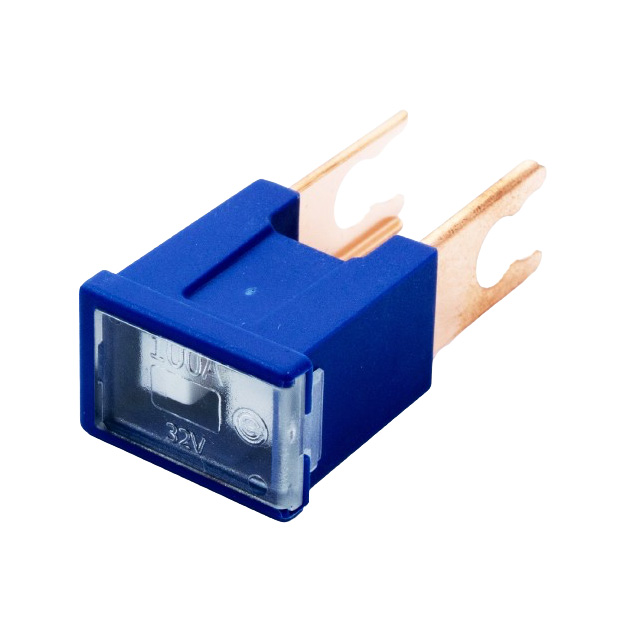

OptiFuse TFLM-100A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	100 A	Blue	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "

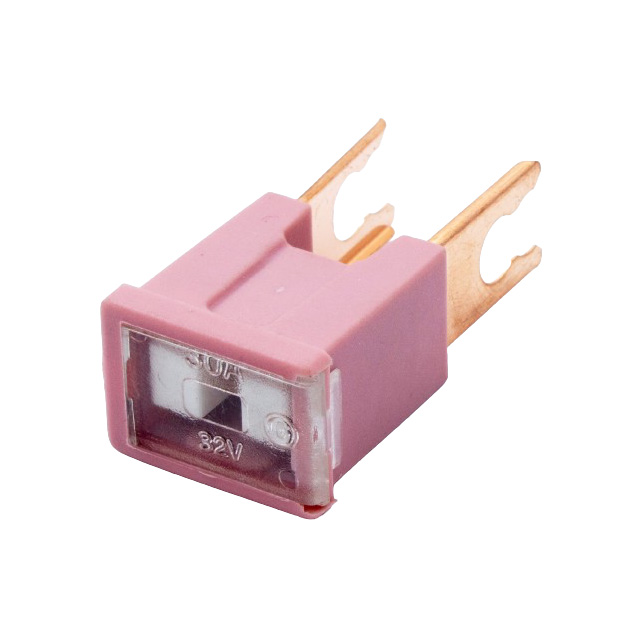

OptiFuse TFLM-30A	Requires Holder	Auto Link	Fast Blow	ISO SAE	1 kA	32 V	32 V	Automotive	30 A	Pink	0.996 "	23 mm	16.3 mm	25.3 mm	0.906 in	0.642 "
