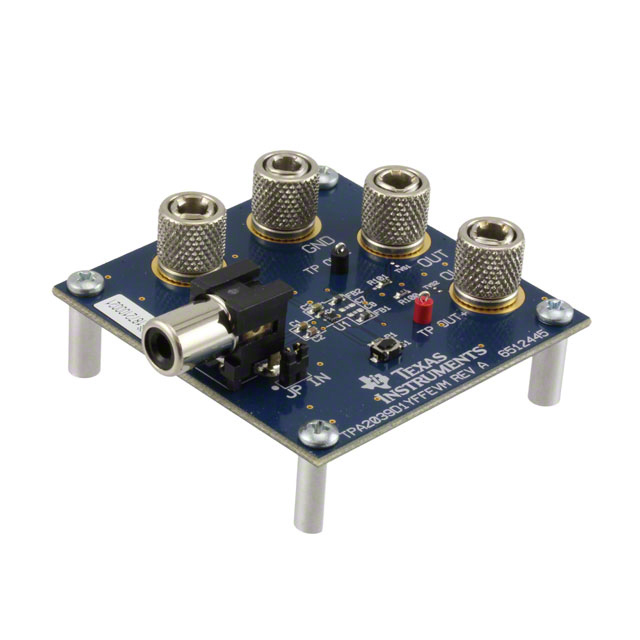

TPA2039D1 Series
3.2-W, mono, analog input Class-D audio amplifier with fixed 12 dB gain & short-circuit protection
Manufacturer: Texas Instruments
Catalog
3.2-W, mono, analog input Class-D audio amplifier with fixed 12 dB gain & short-circuit protection
Key Features
• Powerful Mono Class-D Speaker Amplifier3.24 W (4, 5 V, 10% THDN)2.57 W (4, 5 V, 1% THDN)1.80 W (8, 5 V, 10% THDN)1.46 W (8, 5 V, 1% THDN)+12 dB Fixed GainIntegrated Image Reject Filter for DAC Noise ReductionLow Output Noise of 27 µVLow Quiescent Current of 1.5 mADifferential Input Impedance of 150 kAuto-Recovering Short-Circuit ProtectionThermal-Overload ProtectionFilter-Free Mono Class-D Amp9-Ball 1,21 mm × 1,16 mm 0,4mm Pitch WCSPAPPLICATIONSWireless or Cellular Handsets and PDAsPortable Navigation DevicesGeneral Portable Audio DevicesPowerful Mono Class-D Speaker Amplifier3.24 W (4, 5 V, 10% THDN)2.57 W (4, 5 V, 1% THDN)1.80 W (8, 5 V, 10% THDN)1.46 W (8, 5 V, 1% THDN)+12 dB Fixed GainIntegrated Image Reject Filter for DAC Noise ReductionLow Output Noise of 27 µVLow Quiescent Current of 1.5 mADifferential Input Impedance of 150 kAuto-Recovering Short-Circuit ProtectionThermal-Overload ProtectionFilter-Free Mono Class-D Amp9-Ball 1,21 mm × 1,16 mm 0,4mm Pitch WCSPAPPLICATIONSWireless or Cellular Handsets and PDAsPortable Navigation DevicesGeneral Portable Audio Devices
Description
AI
The TPA2039D1 is a 3.2 W high efficiency filter-free class-D audio power amplifier (class-D amp) with 12 dB of fixed gain in a tiny 1.21 mm × 1.16 mm wafer chip scale package (WCSP). The device requires only one external component.
Features like 93% efficiency, 1.5 mA quiescent current, 0.1 µA shutdown current, 82-dB PSRR, 27 µV output noise and improved RF immunity make the TPA2039D1 class-D amplifier ideal for cellular handsets. A fast start-up time of 4 ms with no audible pop makes the TPA2039D1 ideal for PDA and smart-phone applications.
The TPA2039D1 is a 3.2 W high efficiency filter-free class-D audio power amplifier (class-D amp) with 12 dB of fixed gain in a tiny 1.21 mm × 1.16 mm wafer chip scale package (WCSP). The device requires only one external component.
Features like 93% efficiency, 1.5 mA quiescent current, 0.1 µA shutdown current, 82-dB PSRR, 27 µV output noise and improved RF immunity make the TPA2039D1 class-D amplifier ideal for cellular handsets. A fast start-up time of 4 ms with no audible pop makes the TPA2039D1 ideal for PDA and smart-phone applications.
