XC6504 Series

Catalog

LDO, FIXED, 2.3V, 0.15A, -40 TO 85DEG C ROHS COMPLIANT: YES

...

Part	Protection Features	Supplier Device Package	Package / Case	Current - Quiescent (Iq)	Mounting Type	Number of Regulators	Control Features	Voltage - Output (Min/Fixed)	Current - Output	Voltage Dropout (Max)	Output Configuration	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed) [Min]
Torex Semiconductor Ltd XC6504A231MR-G	Over Current	SOT-25	SC-74A SOT-753	1.5 µA	Surface Mount	1	Enable	2.3 V	150 mA	1.05 V	Positive	6 V	85 C	-40 ¯C
Torex Semiconductor Ltd XC6504A221NR-G	Over Current	SSOT-24	SC-82	1.5 µA	Surface Mount	1	Enable	2.2 V	150 mA	1.05 V	Positive	6 V	85 C	-40 ¯C
Torex Semiconductor Ltd XC6504A2117R-G	Over Current	USPN-4B02	4-XFDFN	1.5 µA	Surface Mount	1	Enable	2.1 V	150 mA		Positive	6 V	85 C	-40 ¯C	1.2 V
Torex Semiconductor Ltd XC6504A3617R-G	Over Current	USPN-4B02	4-XFDFN	1.5 µA	Surface Mount	1	Enable	3.6 V	150 mA	0.59 V	Positive	6 V	85 C	-40 ¯C

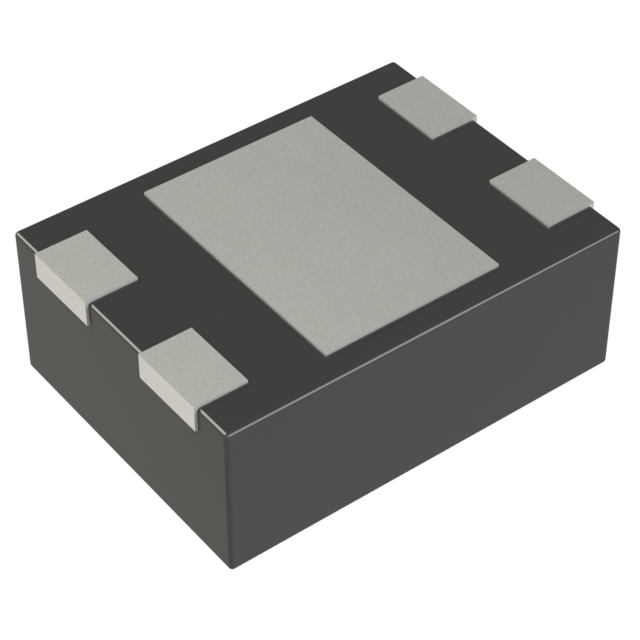

Torex Semiconductor Ltd XC6504A2319R-G	Over Current	USPQ-4B04	4-UDFN Exposed Pad	1.5 µA	Surface Mount	1	Enable	2.3 V	150 mA	1.05 V	Positive	6 V	85 C	-40 ¯C
Torex Semiconductor Ltd XC6504A161NR-G	Over Current	SSOT-24	SC-82	1.27 µA	Surface Mount	1	Enable	1.6 V	150 mA		Positive	6 V	85 C	-40 ¯C	1.54 V
Torex Semiconductor Ltd XC6504A341NR-G	Over Current	SSOT-24	SC-82	1.5 µA	Surface Mount	1	Enable	3.4 V	150 mA	0.67 V	Positive	6 V	85 C	-40 ¯C
Torex Semiconductor Ltd XC6504A1717R-G	Over Current	USPN-4B02	4-XFDFN	1.27 µA	Surface Mount	1	Enable	1.7 V	150 mA	1.47 V	Positive	6 V	85 C	-40 ¯C
Torex Semiconductor Ltd XC6504A271NR-G	Over Current	SSOT-24	SC-82	1.5 µA	Surface Mount	1	Enable	2.7 V	150 mA		Positive	6 V	85 C	-40 ¯C	0.82 V
Torex Semiconductor Ltd XC6504A391NR-G	Over Current	SSOT-24	SC-82	1.5 µA	Surface Mount	1	Enable		150 mA	0.59 V	Positive	6 V	85 C	-40 ¯C		3.9 V
