SGA25U15 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K

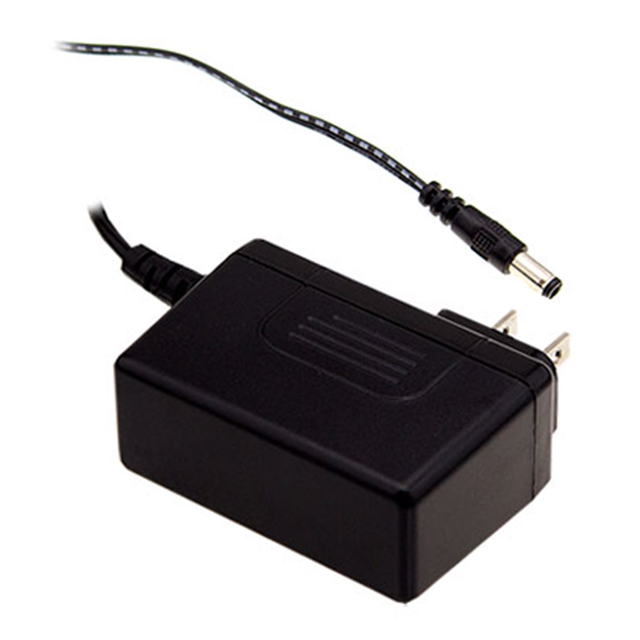

AC/DC WALL MOUNT ADAPTER 15V 25W
| Part | Voltage - Output | Polarization | Efficiency | Input Connector | Form | Output Connector [x] | Output Connector [diameter] | Output Connector | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | No Load Power Consumption | Applications | Current - Output (Max) [Max] | Region Utilized | Cord Length | Cord Length | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 15 V | Positive Center | Level VI | NEMA 1-15P | Wall Mount | 11 mm | 2.1 mm 5.5 mm | Barrel Plug | 1.26 in | 47.5 mm | 2.97 in | 32 mm | 1.87 in | 75.5 mm | 264 VAC | 90 VAC | CB cULus | 75 mW | ITE (Commercial) | 1.66 A | North America | 70.9 " | 1.8 m | -20 ░C | 60 °C | 25 W | Fixed Blade |
