745-100 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 100POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Mounting Type	Color	Number of Positions/Bay/Row	Contact Finish	Card Type	Pitch	Pitch	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Rows [custom]	Number of Positions
EDAC Inc. 745-100-520-206	2	Polyester Thermoplastic	Cantilever	Dual	-40 C	105 ░C	Female	Through Hole	Black	50	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	2	100

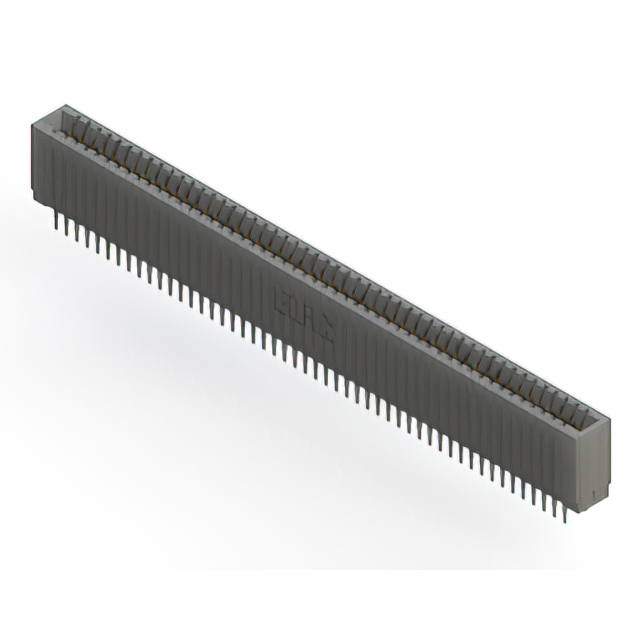

EDAC Inc. 745-100-560-201	2	Polyester Thermoplastic	Cantilever Make Before Break	Dual	-40 C	105 ░C	Female	Through Hole	Black	50	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	2	100
EDAC Inc. 745-100-520-201	2	Polyester Thermoplastic	Cantilever	Dual	-40 C	105 ░C	Female	Through Hole	Black	50	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	2	100
EDAC Inc. 745-100-525-206	2	Polyester Thermoplastic	Cantilever	Dual	-40 C	105 ░C	Female	Through Hole	Black	50	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	2	100
