WR9QE500 Series

Catalog

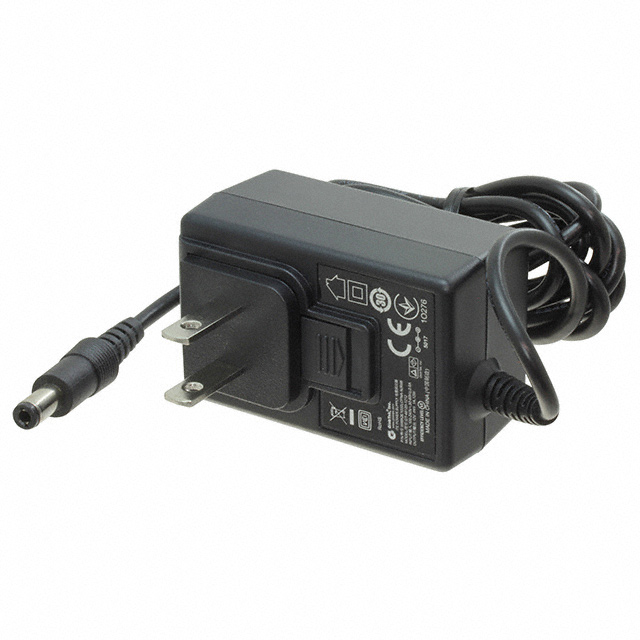

AC/DC WALL MOUNT ADAPTER 12V 6W

Part	Form	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Output	Current - Output (Max) [Max]	Input Type	Output Connector [diameter]	Output Connector	Output Connector [x]	No Load Power Consumption	Polarization	Standard Number	Applications	Region Utilized	Cord Length	Cord Length	Input Connector	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]

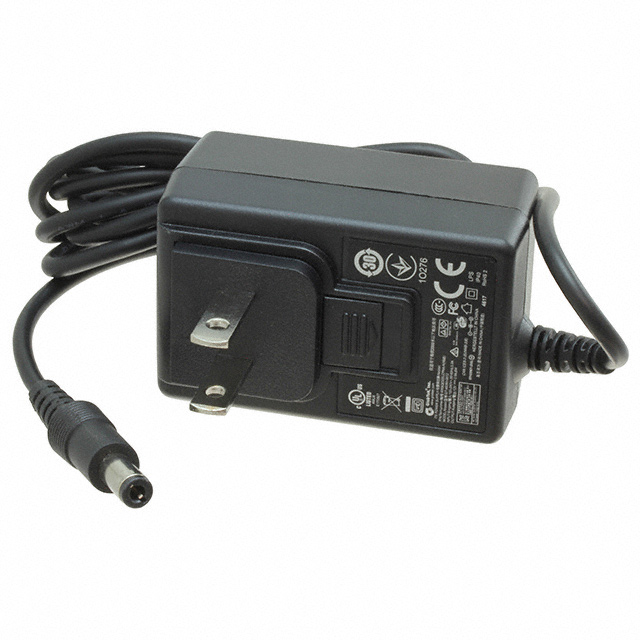

GlobTek, Inc. WR9QE500LCPNA-N(R6B)	Wall Mount	40 °C	0 °C	2.52 in	1.59 in	64 mm	1.18 in	30 mm	40.5 mm	Level VI	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	264 VAC	90 VAC	12 V	500 mA	Multi-Blade (Sold Separately)	2.5 mm 5.5 mm	Barrel Plug	11 mm	75 mW	Positive Center	60950-1	ITE (Commercial)	International	1.83 m	72 in	Multi-Blade (Sold Separately)	6 W
GlobTek, Inc. WR9QE500LCPNAIMR6B	Wall Mount	50 °C	-20 ░C	2.91 in	1.71 "		1.45 in		43.5 mm	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	12 V	500 mA	Multi-Blade (Sold Separately)	2.5 mm 5.5 mm	Barrel Plug	11 mm	75 mW	Positive Center	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Household Appliances ITE (Commercial) Medical	International	1.5 m	59 in	Multi-Blade (Sold Separately)	6 W	36.8 mm	74 mm
GlobTek, Inc. WR9QE500T00-IMR6B	Wall Mount	50 °C	-20 ░C	2.91 in	1.71 "		1.45 in		43.5 mm	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	12 V	500 mA	Multi-Blade (Sold Separately)		Barrel Plug Kit (1.3mm x 3.5mm		75 mW		1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Household Appliances ITE (Commercial) Medical	International	1.5 m	59 in	Multi-Blade (Sold Separately)	6 W	36.8 mm	74 mm
GlobTek, Inc. WR9QE500T00NAIMR6B	Wall Mount	50 °C	-20 ░C	2.91 in	1.71 "		1.45 in		43.5 mm	Level VI	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	264 VAC	90 VAC	12 V	500 mA	Multi-Blade (Sold Separately)		Barrel Plug Kit (1.3mm x 3.5mm		75 mW		1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Household Appliances ITE (Commercial) Medical	International	1.5 m	59 in	Multi-Blade (Sold Separately)	6 W	36.8 mm	74 mm
