LZ7-04 Series

Catalog

LED LZ7 6 COLOR 60W SMD

Part	Thermal Resistance of Package	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Voltage - Forward (Vf) (Typ)	Viewing Angle	Package / Case	Lumens/Watt @ Current - Test	Current - Max	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Wavelength	Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max)	Temperature - Test	Mounting Type	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Voltage - Forward (Vf) (Typ)	Height - Seated (Max)	Current - Max

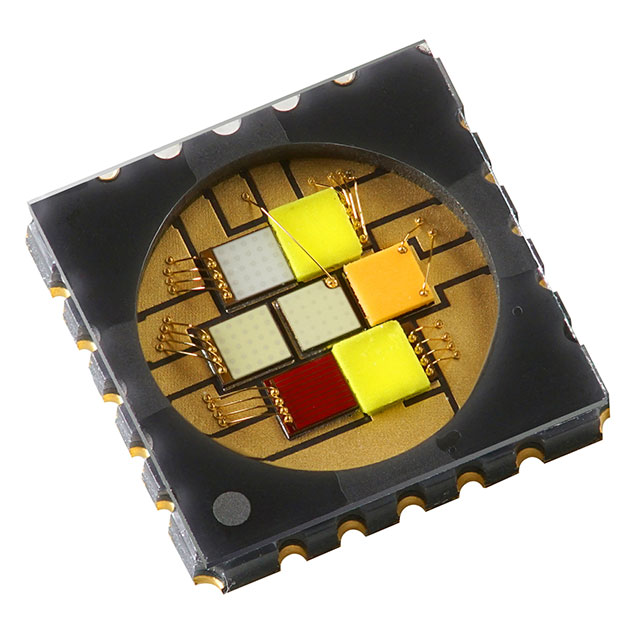

ams-OSRAM USA INC. LZ7-04M2PD-0000	0.8 °C/W	SMD	0.276 "	0.276 in	7 mm	7 mm	Amber Blue Cyan Green Lime Red	2.3 V 3.05 V 3.3 V 3.45 V 3.55 V 6.1 V	114 °	2828 (7070 Metric)	14 lm/W 39 lm/W 41 lm/W 42 lm/W 51 lm/W 102 lm/W	1 A 1.5 A 2.5 A 2.5 A 3 A 3 A	95 lm	140 lm	135 lm	180 lm	42 lm	620 lm	451 nm 500 nm 520 nm 590 nm 623 nm	1A Amber 1A Blue 1A Cyan 1A Green 1A Lime 1A Red	0.05 in	1.26 mm	25 °C	Surface Mount
ams-OSRAM USA INC. LZ7-04MU00-0000	1.4 °C/W	SMD	0.276 "	0.276 in	7 mm	7 mm	Amber Blue Cool Cyan Green Red Violet White		120 °	2828 (7070 Metric)	10 lm/W 42 lm/W 42 lm/W 47 lm/W 51 lm/W 90 lm/W		83 lm	96 lm	101 lm	133 lm	24 lm		395 nm 457 nm 500 nm 525 nm 624 nm 6500 K	700mA Amber 700mA Blue 700mA Cyan 700mA Green 700mA Red 700mA Violet 700mA White		1.11 mm	25 °C	Surface Mount	208 lm	900 mW	2.5V Red 3.3V Amber 3.3V Blue 3.3V White 3.45V Cyan 3.7V Green 3.7V Violet	0.044 in	1.5A Blue 1.5A Green 1.5A Red 1.5A White 1A Amber 1A Cyan 1A Violet
