M2019TN Series
Manufacturer: NKK Switches
Beta
⌘K

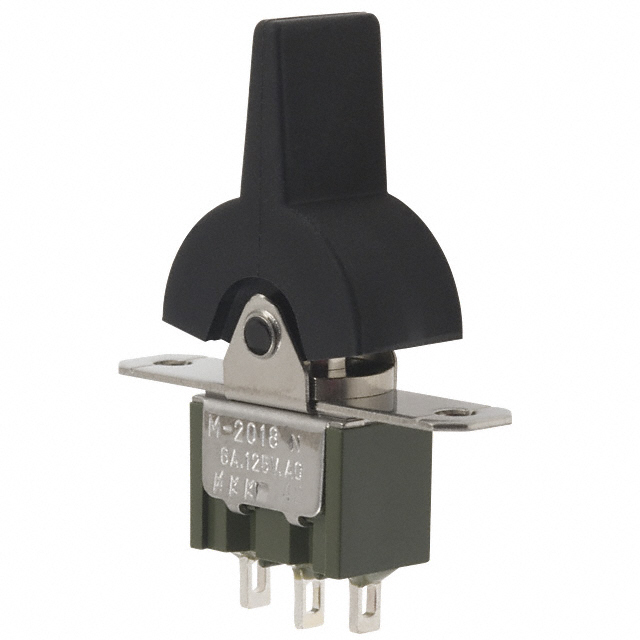

SWITCH ROCKER SPDT 6A 125V
| Part | Electrical Life | Mechanical Life | Approval Agency | Features | Circuit | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Mounting Type | Switch Function | Voltage Rating - DC | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Termination Style | Actuator Type | Current Rating (Amps) | Actuator Marking |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | 50000 Cycles | CSA UL | Epoxy Sealed Terminals | SPDT | 125 V | 85 °C | -30 ░C | Black | Flange Panel Mount | On-Off-Mom | 30 V | 10.1 mm | 17.8 mm | Solder Lug | Paddle | 3 A 6 A | No Marking |
 NKK Switches | 25000 Steps | 50000 Cycles | CSA UL | Epoxy Sealed Terminals | SPDT | 125 V | 85 °C | -30 ░C | Black | Flange Panel Mount | On-Off-Mom | 30 V | 10.1 mm | 17.8 mm | Solder Lug | Concave | 3 A 6 A | No Marking |
NKK Switches | 25000 Steps | 50000 Cycles | CSA UL | Epoxy Sealed Terminals | SPDT | 125 V | 85 °C | -30 ░C | Flange Panel Mount | On-Off-Mom | 30 V | Solder Lug | Actuator Arm Cap Required | 3 A 6 A | Varies by Cap | |||
NKK Switches | 25000 Steps | 50000 Cycles | CSA UL | Epoxy Sealed Terminals | SPDT | 125 V | 85 °C | -30 ░C | Blue | Flange Panel Mount | On-Off-Mom | 30 V | 10.1 mm | 17.8 mm | Solder Lug | Concave | 3 A 6 A | No Marking |
