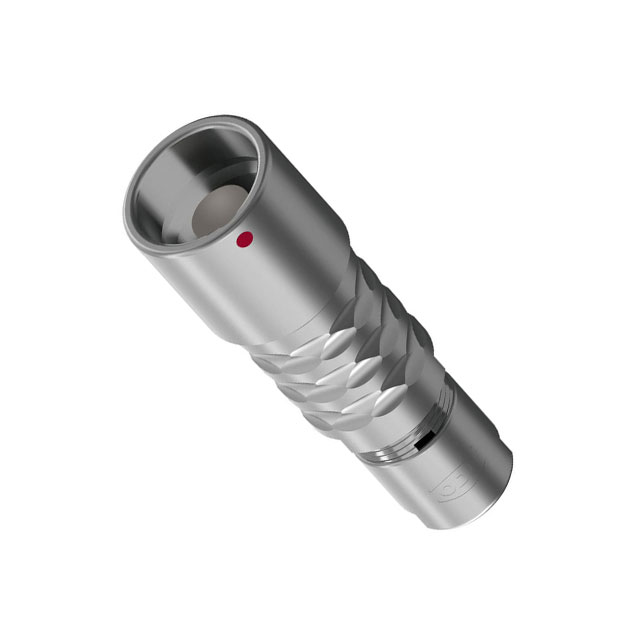

K10K0C-P Series
Manufacturer: ODU
Beta
⌘K

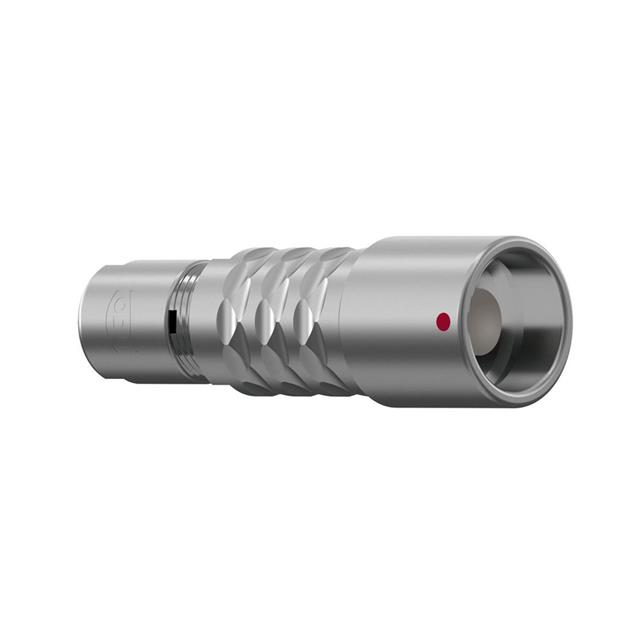

CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Primary Material | Contact Material | Backshell Material, Plating | Ingress Protection | Connector Type | Features | Orientation | Shell Finish | Shielding | Contact Finish - Mating | Fastening Type | Shell Size - Insert [custom] | Current Rating (Amps) | Color | Cable Opening [Min] | Cable Opening [Max] | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Insert Material | Applications | Mounting Type | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 7.5 A | Silver | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass | 120 °C | -40 C | 2 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | |||
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 4 A | Silver | 0.118 in | 0.138 in | Brass | 120 °C | -40 C | 6 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 3.5 mm | 3 mm | |
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Gold | Push-Pull | 0 | 4 A | Silver | 0.157 in | 0.177 " | Brass | 120 °C | -40 C | 7 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4.5 mm | 4 mm | ||
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 7.5 A | Silver | 0.138 " | 0.157 in | Brass | 120 °C | -40 C | 2 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4 mm | 3.5 mm | |
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 7.5 A | Silver | 0.098 in | 0.118 " | Brass | 120 °C | -40 C | 2 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 3 mm | 2.5 mm | |
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 7.5 A | Silver | 0.157 in | 0.177 " | Brass | 120 °C | -40 C | 4 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4.5 mm | 4 mm | |
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Gold | Push-Pull | 0 | 4 A | Silver | 0.138 " | 0.157 in | Brass | 120 °C | -40 C | 7 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4 mm | 3.5 mm | ||
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 7.5 A | Silver | 0.079 in 2 mm | 0.098 in 2.5 mm | Brass | 120 °C | -40 C | 5 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | |||
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Shielded | Gold | Push-Pull | 0 | 4 A | Silver | 0.177 in | 0.197 in | Brass | 120 °C | -40 C | 9 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 5 mm | 4.5 mm | |
Metal | Brass | Brass Chrome over Nickel | IP68 - Dust Tight Waterproof | Receptacle Female Sockets | Backshell | 0 | Chrome over Nickel | Gold | Push-Pull | 0 | 7.5 A | Silver | 0.157 in | 0.177 " | Brass | 120 °C | -40 C | 5 | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Free Hanging (In-Line) | 4.5 mm | 4 mm |
