853-004 Series
Manufacturer: NorComp Inc.
Beta
⌘K

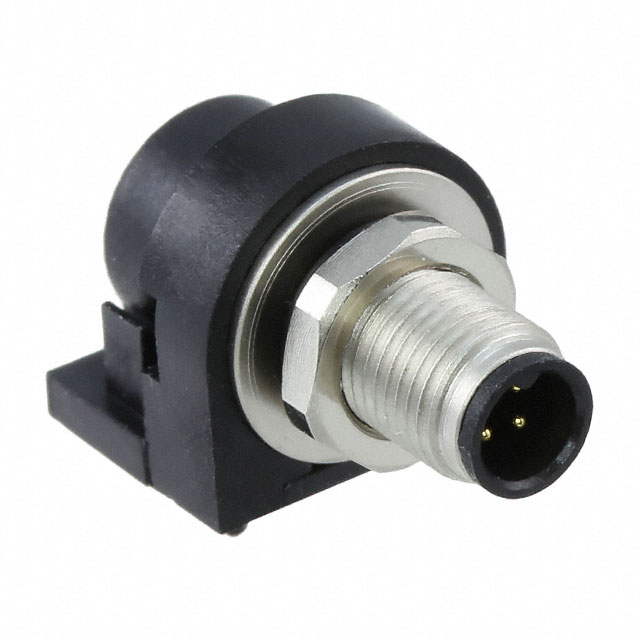

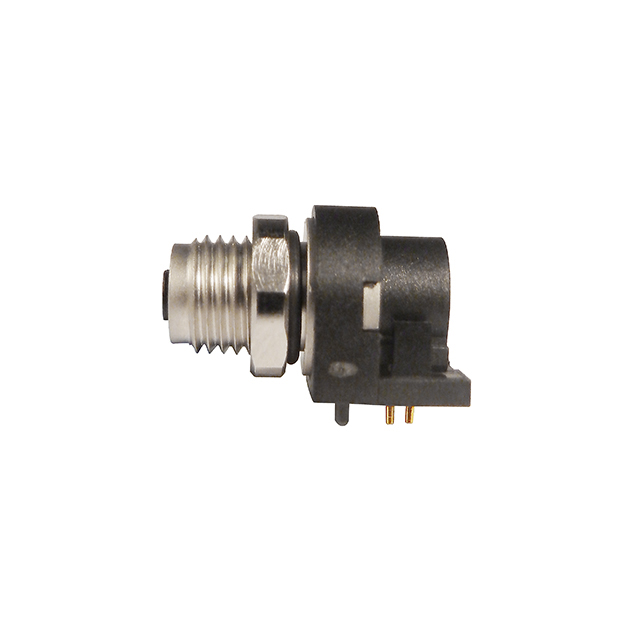

SENSOR CONNECTOR, IP67, R/A, PANEL, VULCON SERIES, M5, MALE, 4 POSITIONS, PCB PIN
| Part | Orientation | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Shell Size - Insert | Mounting Type | Contact Finish - Mating | Termination | Fastening Type | Contact Finish Thickness - Mating | Connector Type | Shielding | Contact Material | Voltage Rating | Primary Material | Shell Material | Material Flammability Rating | Number of Positions | Applications | Features | Ingress Protection | Color | Shell Finish | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Keyed | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | M5-4 | Panel Mount Right Angle Through Hole | Gold | Solder | Threaded | Flash | Receptacle Male Pins | Shielded | Brass | 60 VDC | Metal | Brass | UL94 V-0 | 4 | Industrial Medical | Board Guide | IP67 - Dust Tight Waterproof | Black Silver | Nickel | ||
 NorComp Inc. | Keyed | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | M5-4 | Panel Mount Right Angle Through Hole | Gold | Solder | Threaded | Receptacle Male Pins | Shielded | Brass | 60 VDC | Metal | Brass | UL94 V-0 | 4 | Industrial Medical | Board Guide | IP67 - Dust Tight Waterproof | Black Silver | Nickel | 0.25 µm | 10 µin | |
 NorComp Inc. | Keyed | 85 °C | -40 C | Polybutylene Terephthalate (PBT) | M5-4 | Panel Mount Right Angle Through Hole | Gold | Solder | Threaded | Flash | Plug Female Sockets | Shielded | Brass | 60 VDC | Metal | Brass | UL94 V-0 | 4 | Industrial Medical | Board Guide | IP67 - Dust Tight Waterproof | Black Silver | Nickel |
