AONV210 Series

Catalog

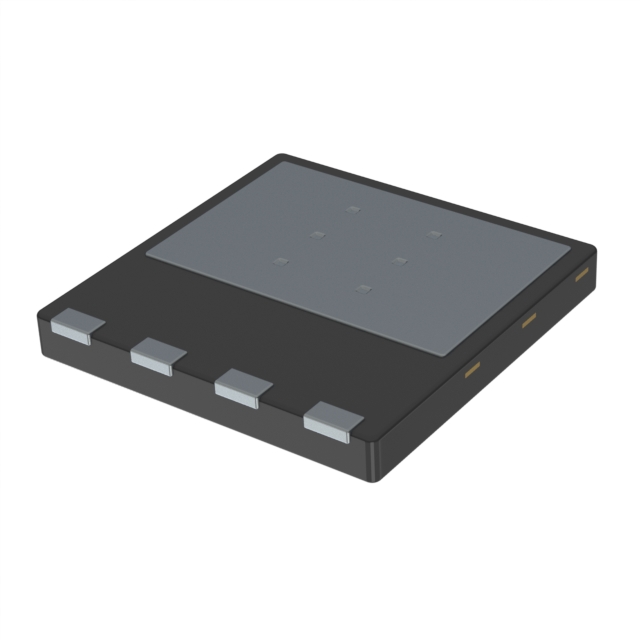

MOSFET N-CH 600V 4.1A/20A 4DFN

Part	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Power Dissipation (Max)	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Rds On (Max) @ Id, Vgs	Vgs(th) (Max) @ Id	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Technology	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds [Max]	Gate Charge (Qg) (Max) @ Vgs [Max]	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)
Alpha & Omega Semiconductor Inc. AONV210A60	4.1 A 20 A	208 W	8.3 W	N-Channel	4-PowerTSFN	600 V	210 mOhm	4 V	150 °C	-55 °C	Surface Mount	MOSFET (Metal Oxide)	20 V	1935 pF	34 nC	4-DFN (8x8)	10 V
