M80-828 Series

Catalog

5+5 POS. MALE DIL VERTICAL SMT CONN. LATCHES ROHS COMPLIANT: YES

Part	Mated Stacking Heights [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Insulation Material	Contact Finish - Post	Number of Positions Loaded	Contact Material	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Termination	Insulation Height	Insulation Height	Insulation Color	Voltage Rating	Fastening Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions	Number of Rows [custom]	Style	Connector Type	Shrouding	Mated Stacking Heights	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post	Number of Positions [custom]	Features

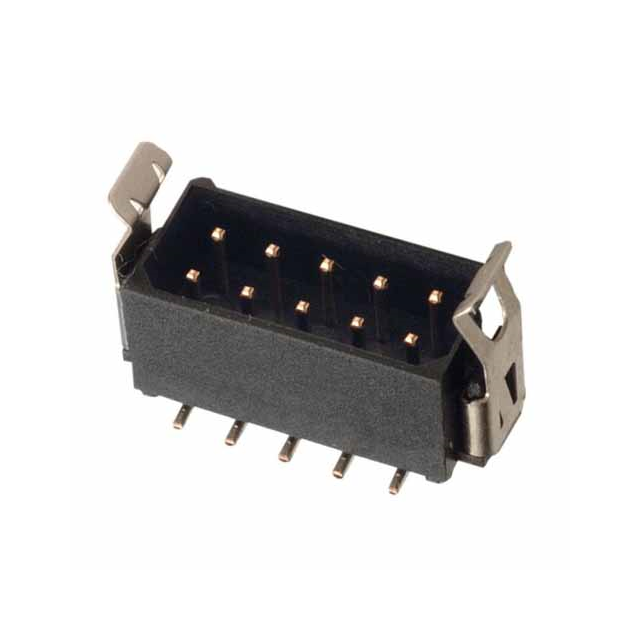

Harwin Inc. M80-8281045	7.93 mm 8.53 mm	29.5 µin	0.75 µm	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Gold	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 VAC	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	10	2	Board to Board Cable	Header	Shrouded - 4 Wall

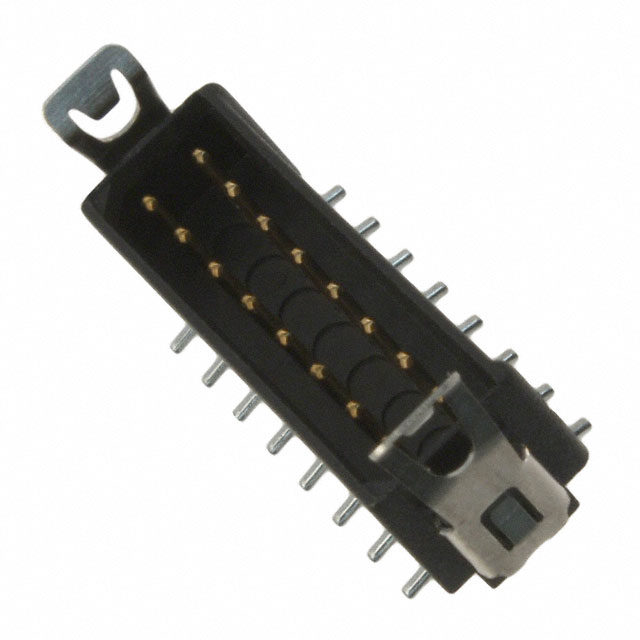

Harwin Inc. M80-8281642				29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Tin	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 V	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	16	2	Board to Board Cable	Header	Shrouded - 4 Wall	7.85 mm 8.45 mm 10.5 mm 14.25 mm	118.1 µin	3 µm
Harwin Inc. M80-8281845	7.93 mm 8.53 mm	29.5 µin	0.75 µm	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Gold	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 VAC	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	18	2	Board to Board Cable	Header	Shrouded - 4 Wall
Harwin Inc. M80-8280645	7.93 mm 8.53 mm	29.5 µin	0.75 µm	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Gold	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 VAC	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	6	2	Board to Board Cable	Header	Shrouded - 4 Wall

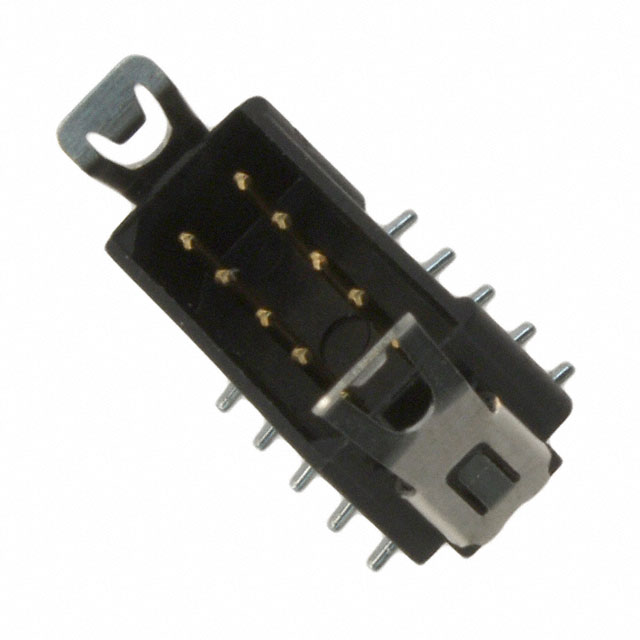

Harwin Inc. M80-8281042				29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Tin	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 V	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	10	2	Board to Board Cable	Header	Shrouded - 4 Wall	7.85 mm 8.45 mm 10.5 mm 14.25 mm	118.1 µin	3 µm
Harwin Inc. M80-8281245	7.93 mm 8.53 mm	29.5 µin	0.75 µm	29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Gold	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 VAC	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	12	2	Board to Board Cable	Header	Shrouded - 4 Wall
Harwin Inc. M80-8281022				29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Tin-Lead	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 V	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	10	2	Board to Board Cable	Header	Shrouded - 4 Wall	7.85 mm 8.45 mm 10.5 mm 14.25 mm	118.1 µin	3 µm
Harwin Inc. M80-8283442P	7.93 mm 8.53 mm	0.3 µm		29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Tin	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 VAC	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A		2	Board to Board Cable	Header	Shrouded - 4 Wall				12 µin	34	Pick and Place

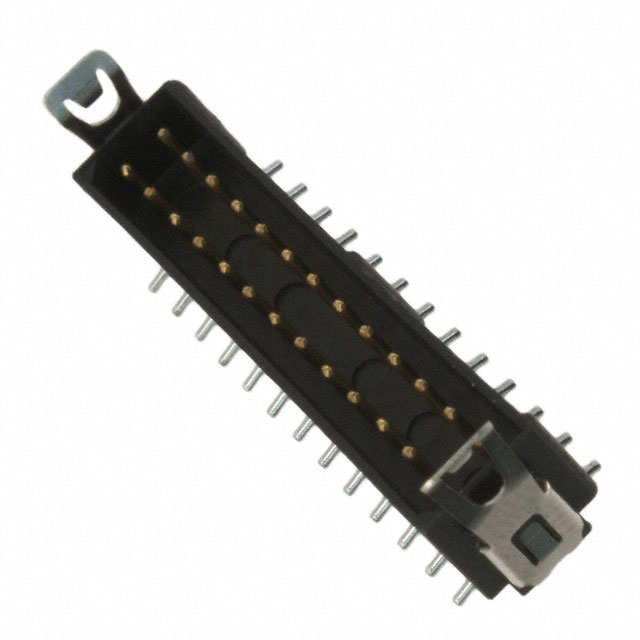

Harwin Inc. M80-8282642				29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Tin	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 V	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	26	2	Board to Board Cable	Header	Shrouded - 4 Wall	7.85 mm 8.45 mm 10.5 mm 14.25 mm	118.1 µin	3 µm
Harwin Inc. M80-8280642				29.5 µin	0.75 µm	Polyphenylene Sulfide (PPS) Glass Filled	Tin	All	Phosphor Bronze	Surface Mount	2 mm	0.079 in	UL94 V-0	Solder	5.2 mm	0.205 "	Black	800 V	Latch Lock	Male Pin	-55 C	125 °C	Circular	Gold	0.079 "	2 mm	2.2 A	6	2	Board to Board Cable	Header	Shrouded - 4 Wall	7.85 mm 8.45 mm 10.5 mm 14.25 mm	118.1 µin	3 µm
