UF300 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K
FAN AXIAL 380X98MM 115VAC
| Part | Material - Frame | Material - Blade | Air Flow | Air Flow | Current Rating (Amps) | Approval Agency | RPM | Fan Type | Size / Dimension [diameter] | Power (Watts) | Width [y] | Termination | Static Pressure | Static Pressure | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Bearing Type | Weight | Weight | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

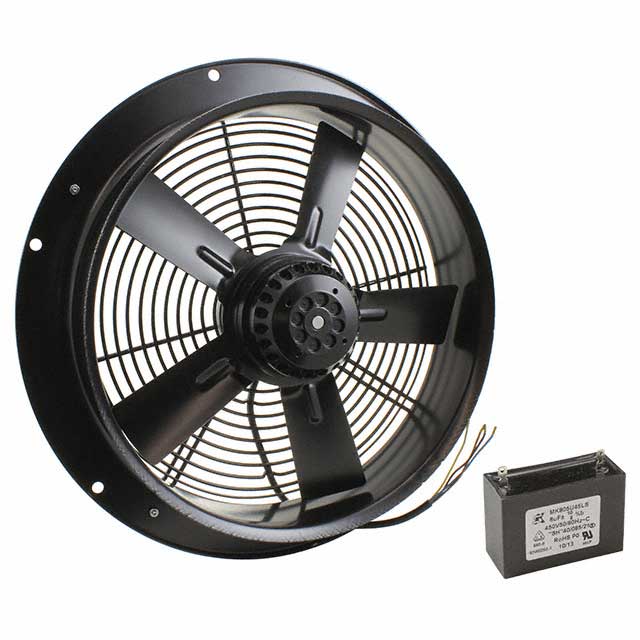

 Mechatronics Fan Group | Steel | Steel | 1615 CFM | 45.22 mł/min | 2.4 A | CE cUL TUV UL | 2950 RPM | Tubeaxial | 398 mm | 200 Watts | 98.3 mm | 2 Wire Leads | 274 Pa | 1.1 in H2O | 78 dB(A) | -20 ░C | 70 °C | 115 VAC | Ball | 4.5 kg | 9.9 lbs | Permanent Split Capacitor Motor |

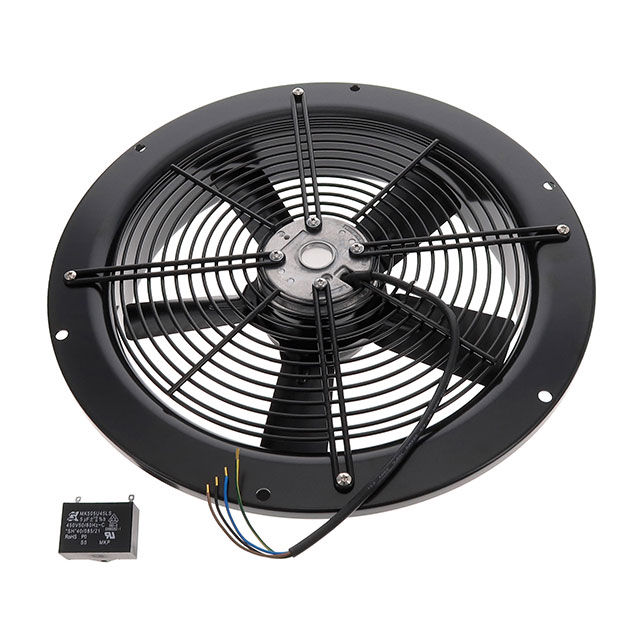

 Mechatronics Fan Group | Steel | Steel | 1615 CFM | 45.22 mł/min | 1.2 A | CE cUL TUV UL | 2950 RPM | Tubeaxial | 398 mm | 200 Watts | 98.3 mm | 2 Wire Leads | 274 Pa | 1.1 in H2O | 78 dB(A) | -20 ░C | 70 °C | 230 VAC | Ball | 4.5 kg | 10 lbs | Permanent Split Capacitor Motor |
