737-019 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 19POS 0.156

Part	Termination Rows	Material - Insulation	Number of Positions/Bay/Row	Number of Positions	Contact Finish	Mounting Type	Contact Material	Termination	Contact Finish Thickness	Contact Finish Thickness	Gender	Pitch	Pitch	Color	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Rows	Read Out	Card Thickness [Max]	Card Thickness [Min]	Contact Type
EDAC Inc. 737-019-520-106	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever

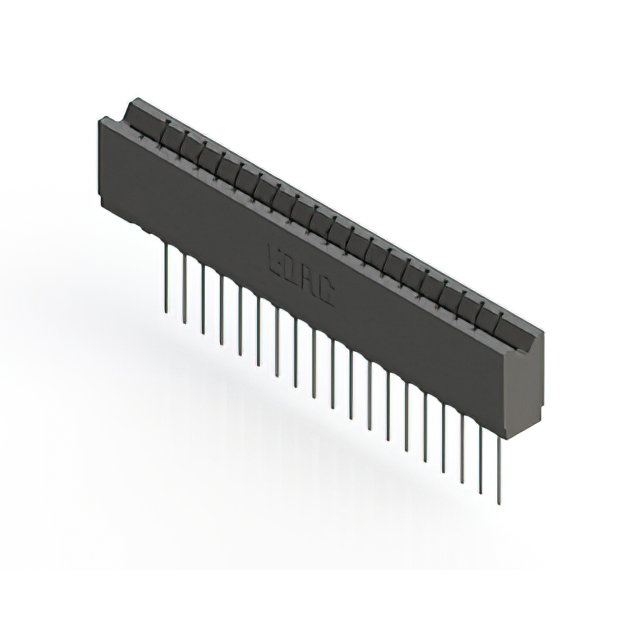

EDAC Inc. 737-019-541-106	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-525-106	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-520-101	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-540-106	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever

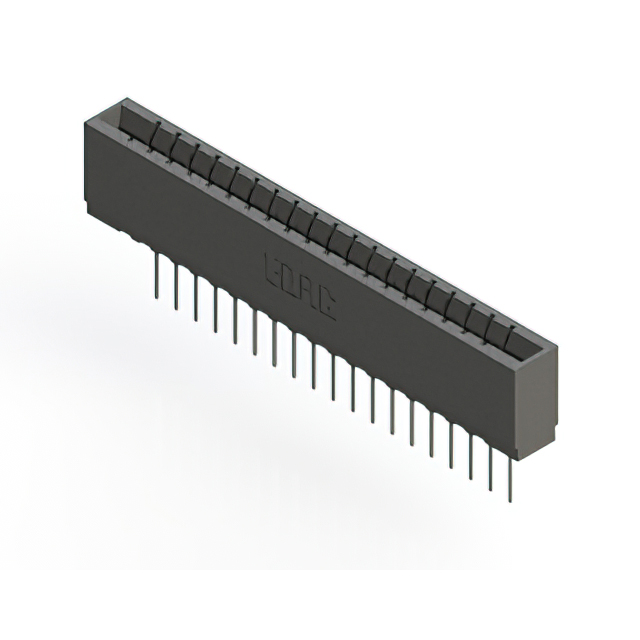

EDAC Inc. 737-019-540-101	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-525-101	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-545-101	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-522-106	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
EDAC Inc. 737-019-545-106	1	Polyester Thermoplastic	19	19	Gold	Through Hole	Copper Alloy	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Female	3.96 mm	0.156 in	Black	-40 C	105 ░C	Non Specified - Single Edge	1	Single	0.07 in 1.78 mm	0.054 in 1.37 mm	Cantilever
