2254/4 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

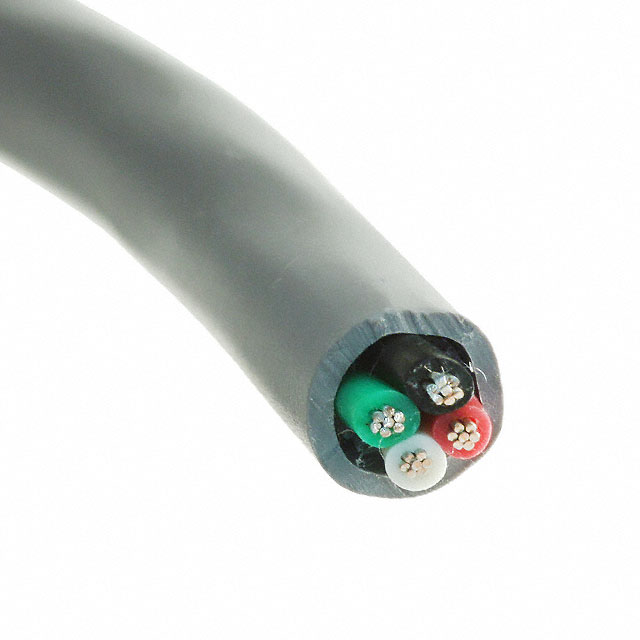

CABLE 4COND 22AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket Color | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Conductor Insulation | Length [x] | Length [x] | Conductor Material | Shield Type | Number of Conductors | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Multi-Conductor | 22 AWG | 30 AWG | 7 | Communication Control | Slate | 300 VDC | 0.206 in | 5.23 mm | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | Copper Tinned | Spiral | 4 | ||
ALPHA WIRE | 95 % | Copper Bare | Poly-Vinyl Chloride (PVC) | 0.02 " | 0.508 mm | Multi-Conductor | 22 AWG | 30 AWG | 7 | Communication Control | Slate | 300 VDC | 0.206 in | 5.23 mm | 80 °C | -20 ░C | Poly-Vinyl Chloride (PVC) | Copper Tinned | Spiral | 4 | 304.8 m | 1000 ft |
