5307FE Series
Manufacturer: Belden Inc.
Beta
⌘K

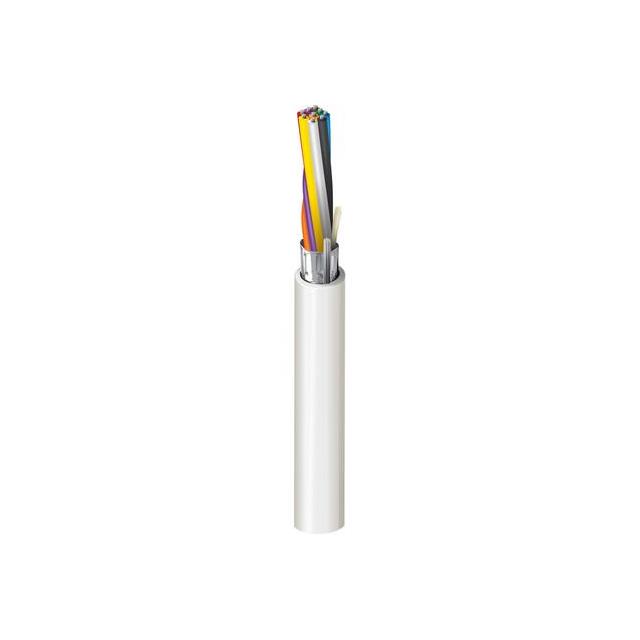

CABLE 9CON 18AWG GRAY SHLD
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Usage | Jacket Color | Jacket (Insulation) Material | Conductor Insulation | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Material | Shield Type | Length | Length | Number of Conductors | Features | Cable Type | Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 0.018 in | 0.457 mm | 0.264 in | 6.71 mm | 18 AWG | Security Sound | Gray | Poly-Vinyl Chloride (PVC) Riser | Polypropylene (PP) | UL Style CMR | 26 AWG | 7 | Copper Bare | Foil | 304.8 m | 1000 ft | 9 | Drain Wire Rip Cord | Multi-Conductor | 300 VDC |
