G3CN-202 Series

Catalog

SSR RELAY SPST-NO 2A 75-264V

Part	Approval Agency	Output Type	Package / Case	Load Current	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]
Omron Automation and Safety G3CN-202P-DC3-28	UL	AC Zero Cross	Module	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	28 V	3 V
Omron Automation and Safety G3CN-202PL-3-US DC12	UL	AC	Module	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	14.4 V	9.6 V
Omron Automation and Safety G3CN-202PL1 DC5	UL	AC	4-SIP	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	6 V	4 V

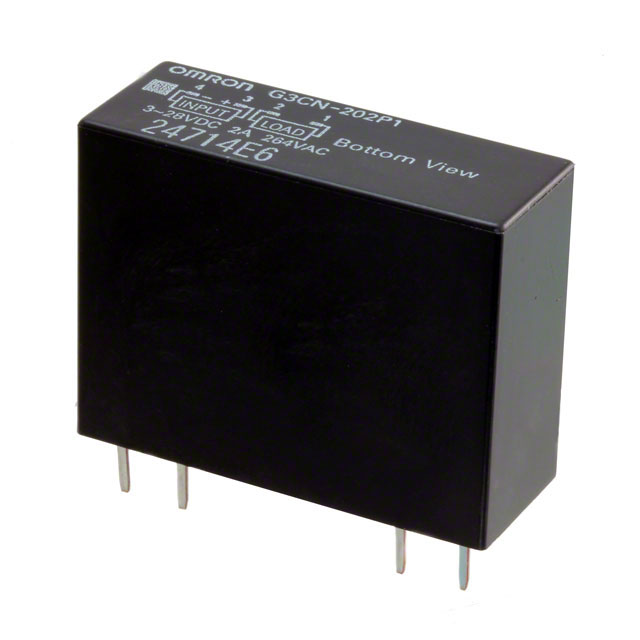

Omron Automation and Safety G3CN-202P1-DC3-28	UL	AC Zero Cross	Module	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	28 V	3 V

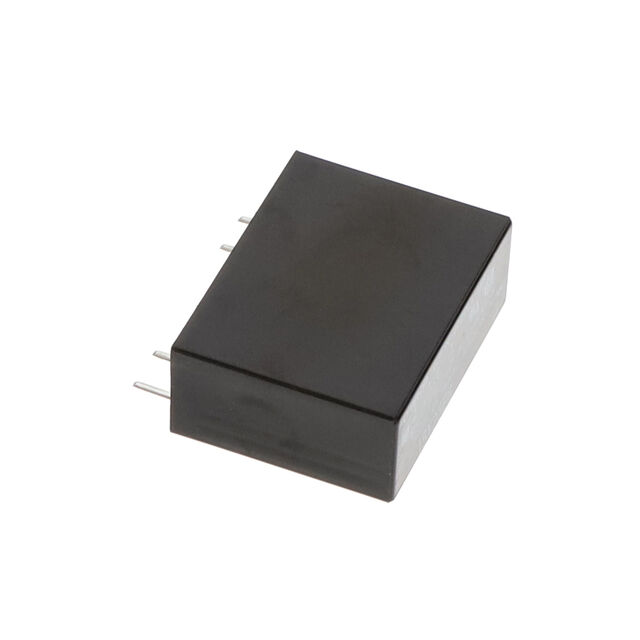

Omron Automation and Safety G3CN-202PL1-US DC24	UL	AC	4-SIP	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	28.8 V	19.2 V
Omron Automation and Safety G3CN-202PL3-US-DC5	UL	AC	Module	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	6 V	4 V
Omron Automation and Safety G3CN-202PL-DC12	UL	AC	Module	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	14.4 V	9.6 V
Omron Automation and Safety G3CN-202PL1-US DC12	UL	AC	4-SIP	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	14.4 V	9.6 V
Omron Automation and Safety G3CN-202P1-US DC3-28	UL	AC Zero Cross	4-SIP	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	28 V	3 V
Omron Automation and Safety G3CN-202PL DC5	UL	AC	Module	2 A	80 °C	-30 ░C	PC Pin	75 V	264 V	Through Hole	6 V	4 V
