MP0042 Series
Manufacturer: BULGIN LIMITED
Beta
⌘K

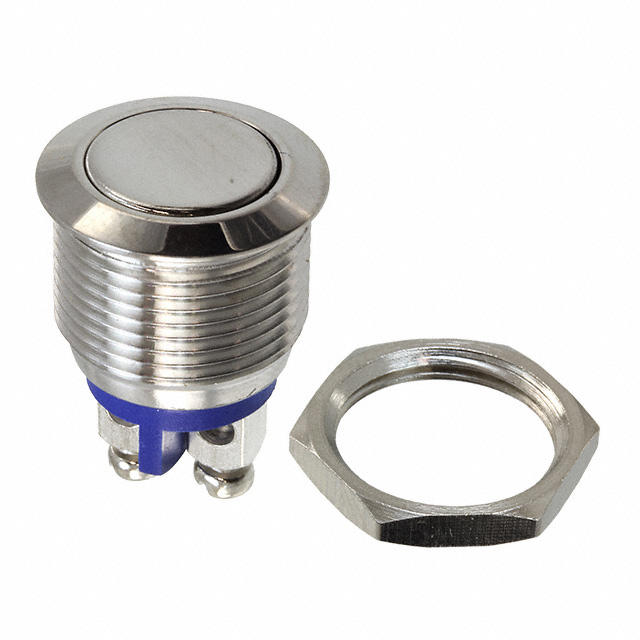

VANDAL RESISTANT SWITCH, SPST-NO, NATURAL, MOMENTARY, SCREW
| Part | Electrical Life | Mechanical Life | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Mounting Type | Voltage Rating - DC | Current Rating (Amps) | Color - Actuator/Cap | Termination Style | Actuator Type | Type | Panel Cutout Dimensions [diameter] | Actuator Marking | Switch Function | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BULGIN LIMITED | 100000 Cycles | 1000000 Cycles | 55 °C | -20 ░C | SPST-NO | Panel Mount Front | 36 VDC | 2 A | Silver | Screw Terminal | Button Domed Round | Standard | 16.2 mm | No Marking | Off-Mom | IP65 - Dust Tight Water Resistant | Stainless Steel |
 BULGIN LIMITED | 100000 Cycles | 1000000 Cycles | 55 °C | -20 ░C | SPST-NO | Panel Mount Front | 36 VDC | 2 A | Silver | Screw Terminal | Button Flush Round | Standard | 16.2 mm | No Marking | Off-Mom | IP65 - Dust Tight Water Resistant | Stainless Steel |
