317-016 Series

Manufacturer: EDAC Inc.

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 16 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Part	Material - Insulation	Termination	Contact Finish Thickness	Contact Finish Thickness	Color	Contact Finish	Contact Material	Mounting Type	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Pitch	Pitch	Number of Positions/Bay/Row	Card Type	Number of Rows [custom]	Flange Feature	Features	Flange Feature [diameter]	Flange Feature [diameter]

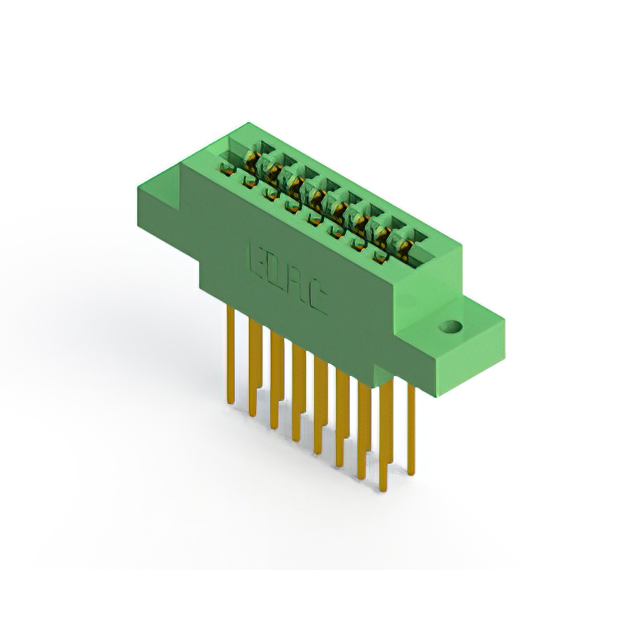

EDAC Inc. 317-016-542-802	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2
EDAC Inc. 317-016-542-807	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	M3 Threaded Insert Top Mount Opening

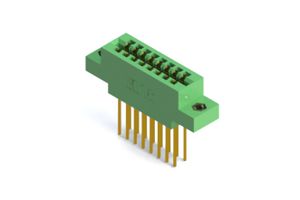

EDAC Inc. 317-016-540-808	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	4-40 Threaded Insert Top Mount Opening

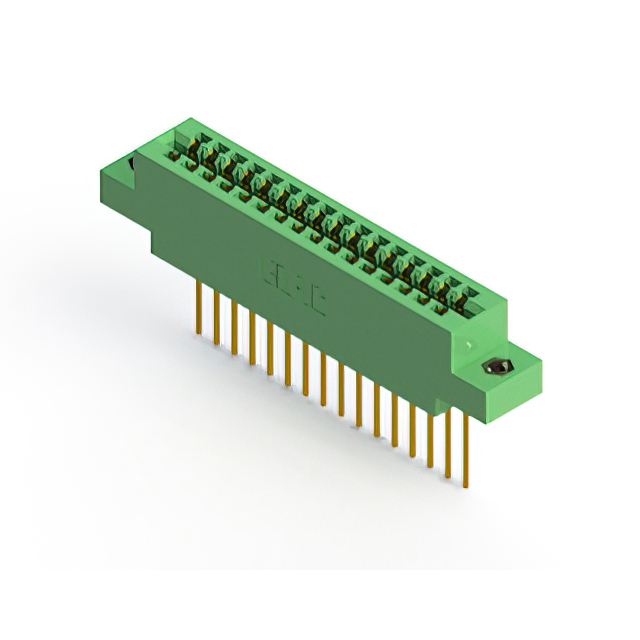

EDAC Inc. 317-016-541-608	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Single	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm		3.96 mm	0.156 in	16	Non Specified - Dual Edge	2	4-40 Threaded Insert Top Mount Opening
EDAC Inc. 317-016-541-678	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Single	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm		3.96 mm	0.156 in	16	Non Specified - Dual Edge	2	4-40 Threaded Insert Top Mount Opening	Card Guides

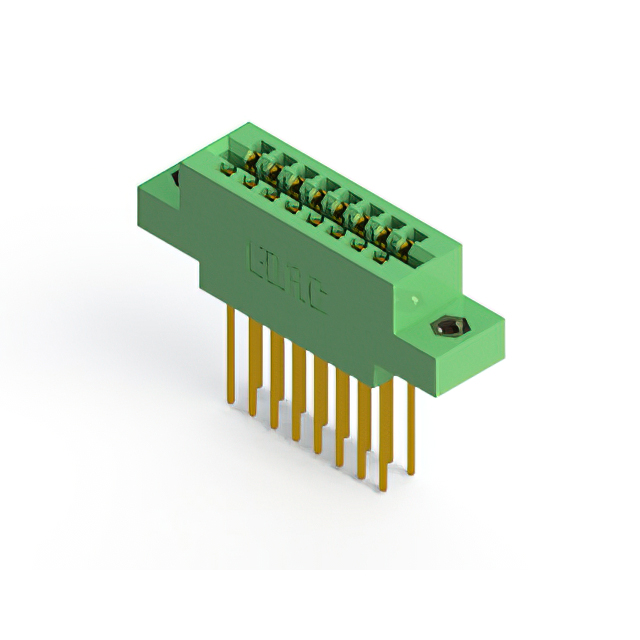

EDAC Inc. 317-016-542-878	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	4-40 Threaded Insert Top Mount Opening	Card Guides

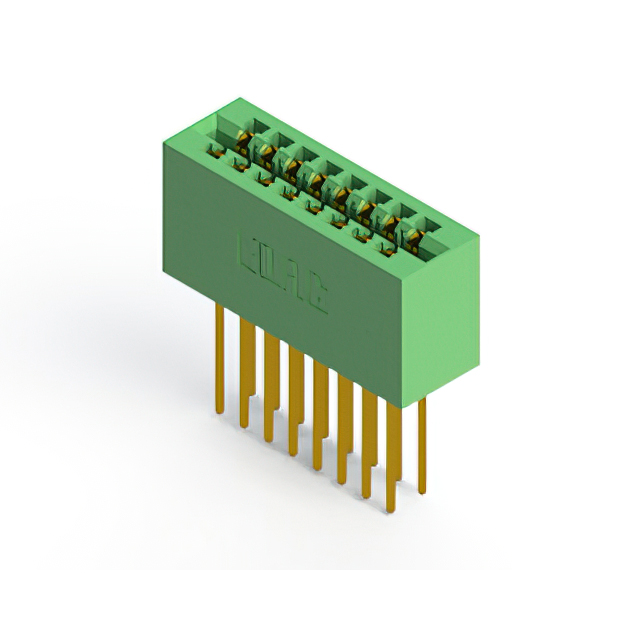

EDAC Inc. 317-016-542-801	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2

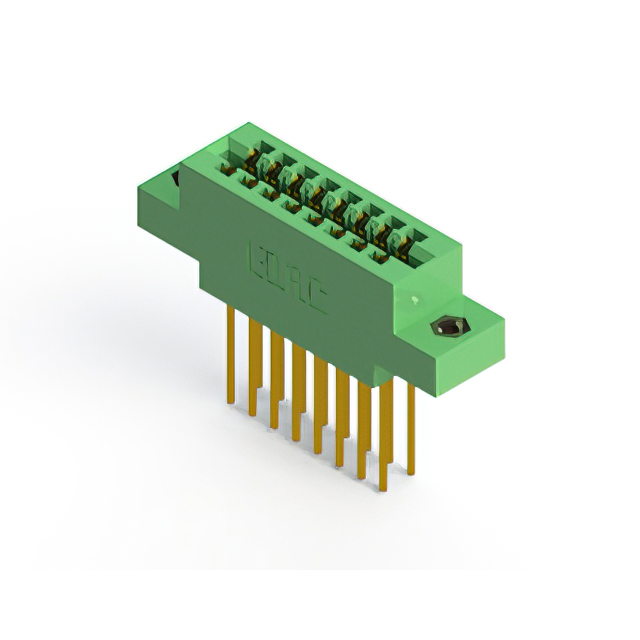

EDAC Inc. 317-016-540-878	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2	4-40 Threaded Insert Top Mount Opening	Card Guides

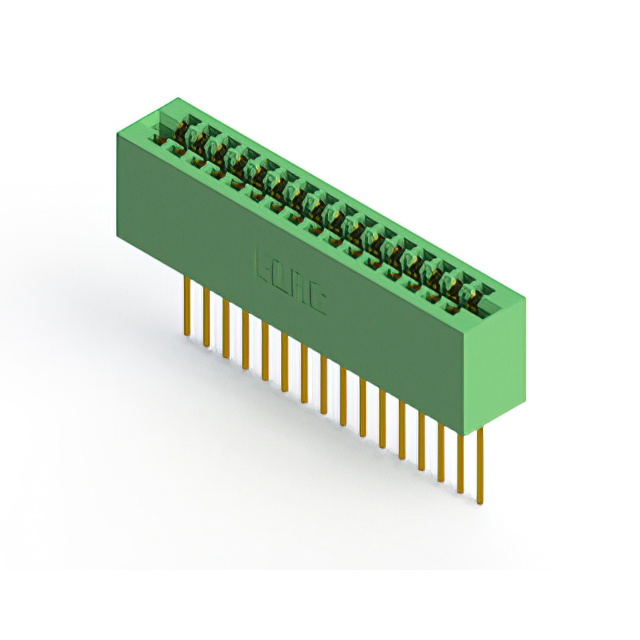

EDAC Inc. 317-016-541-601	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Single	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm		3.96 mm	0.156 in	16	Non Specified - Dual Edge	2

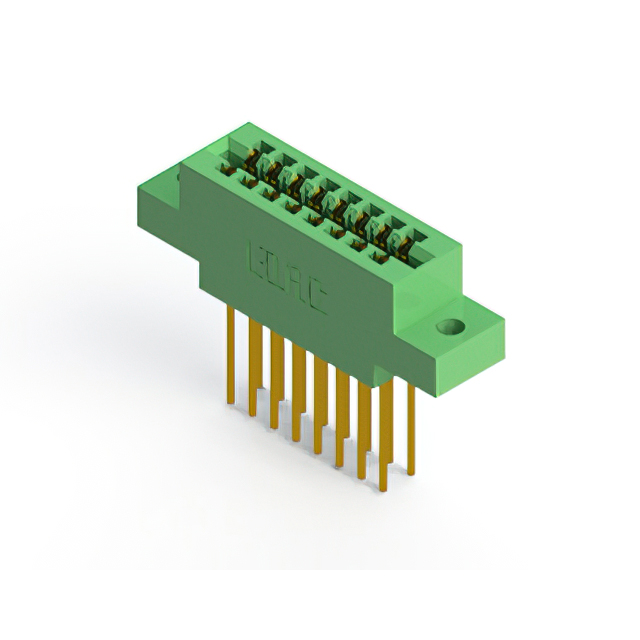

EDAC Inc. 317-016-540-804	Diallyl Phthalate (DAP)	Wire Wrap	0.25 Ám	10 Áin	Green	Gold	Copper Alloy	Through Hole	Dual	-65 ░C	125 °C	Female	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	16	3.96 mm	0.156 in	8	Non Specified - Dual Edge	2			0.156 "	3.96 mm
