Micro-Fit+ Vertical Header, Surface Mount, 3.00mm Pitch, Dual Row, 6 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Press Clip, Black, Tape and Reel
Micro-Fit+ Vertical Header, Surface Mount, 3.00mm Pitch, Dual Row, 6 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Press Clip, Black, Tape and Reel
Micro-Fit+ Vertical Header, Surface Mount, 3.00mm Pitch, Dual Row, 6 Circuits, Tin (Sn) Plating, Glow-Wire Capable, Press Clip, Black, Tape and Reel
| Part | Number of Rows | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Features | Number of Positions Loaded | Style | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Shape | Current Rating (Amps) | Contact Finish - Post | Insulation Color | Fastening Type | Contact Material | Material Flammability Rating | Insulation Height [z] | Insulation Height [z] | Voltage Rating | Mounting Type | Contact Type | Shrouding | Connector Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

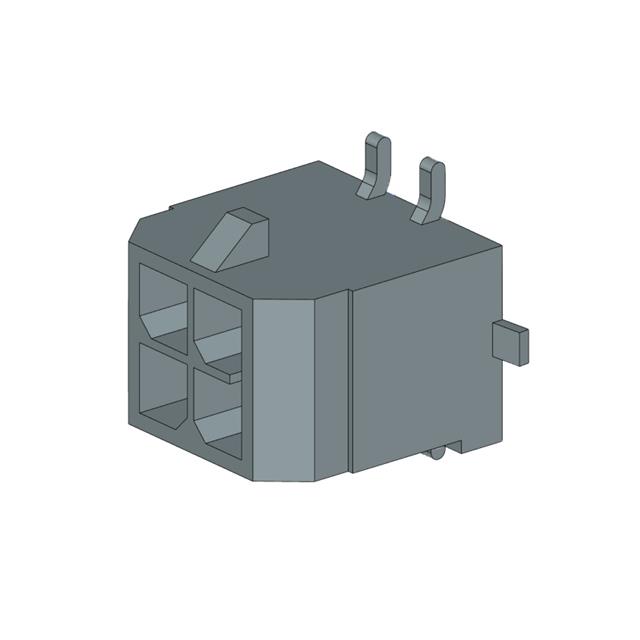

 Molex | 2 | Solder | -40 °C | 105 ░C | 3 mm | 0.118 in | Board Lock Pick and Place | All | Board to Cable/Wire | 0.118 in | 3 mm | 4 | Square | 12.5 A | Tin | Black | Locking Ramp | Copper Alloy | UL94 V-0 | 9.91 mm | 0.39 in | 600 VAC | Surface Mount | Male Pin | Shrouded - 4 Wall | Header | |

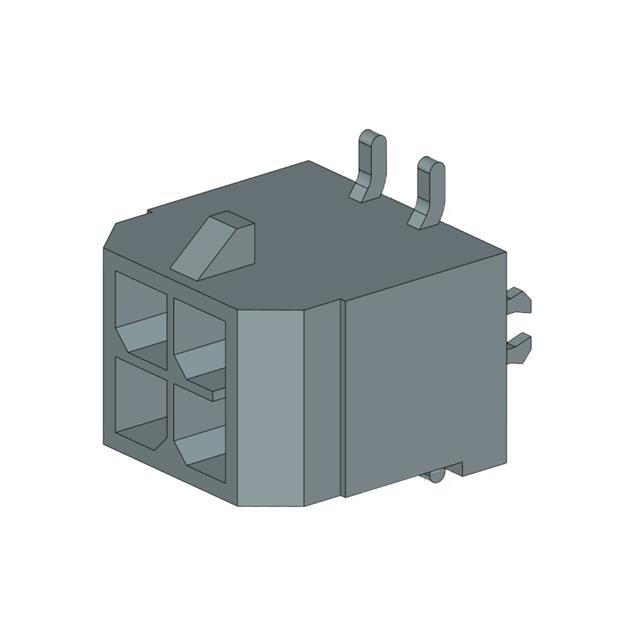

 Molex | 2 | Solder | -40 °C | 105 ░C | 3 mm | 0.118 in | Pick and Place Solder Retention | All | Board to Cable/Wire | 0.118 in | 3 mm | 4 | Square | Tin | Black | Locking Ramp | Copper Alloy | UL94 V-0 | 9.91 mm | 0.39 in | 600 VAC | Surface Mount | Male Pin | Shrouded - 4 Wall | Header | Varies by Wire Gauge | |

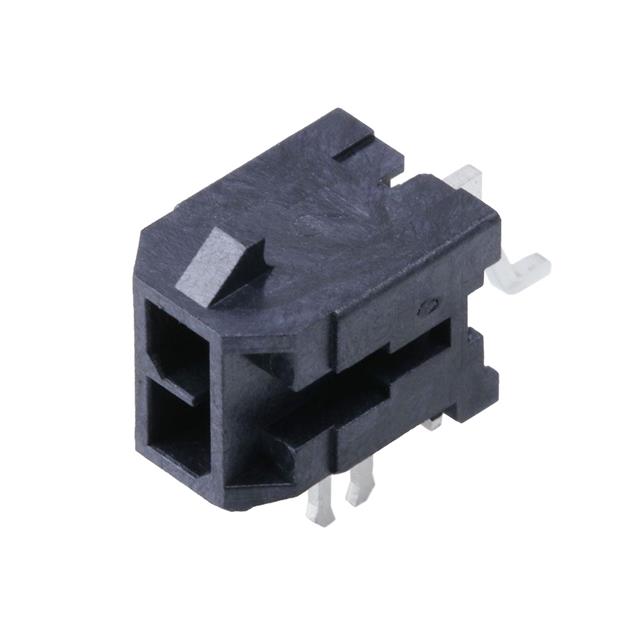

 Molex | 2 | Solder | -40 °C | 105 ░C | 3 mm | 0.118 in | Board Lock Retention Clips | All | Board to Cable/Wire | 2 | Square | 12.5 A | Tin | Black | Locking Ramp | Copper Alloy | UL94 V-0 | 600 VAC | Surface Mount Right Angle | Male Pin | Shrouded - 4 Wall | Header |
