09338006 Series

Manufacturer: HARTING

Catalog

Catalog

HEAVY DUTY CONNECTOR, HAN E HIGH TEMP SERIES, INSERT, 6 CONTACTS, 6B, PLUG, SCREW PIN

Part	Housing Material	Voltage Rating	Number of Positions	Connector Type	Termination Style	Gender	Size	Current Rating (Amps)	Contact Finish	Type	Contact Termination	Pin or Socket	Wire Gauge	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]
HARTING 09338062603	Liquid Crystal Polymer (LCP)	500 V	6+Ground	Insert	Screw	Male	6B	16 A
HARTING 09338006121									Silver	Machined	Crimp	Pin	20 AWG
HARTING 09338062703	Liquid Crystal Polymer (LCP)	500 V	6+Ground	Insert	Screw	Female	6B	16 A
HARTING 09338062704	Liquid Crystal Polymer (LCP)	500 V	6+Ground	Insert without Contacts	Crimp	Female	6B	16 A						Han® High Temp

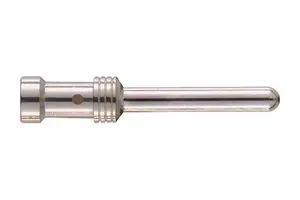

HARTING 09338006104									Silver	Machined	Crimp	Pin	16 AWG
HARTING 09338006220									Silver	Machined	Crimp	Socket	20 AWG
HARTING 09338062602	Liquid Crystal Polymer (LCP)	400 V	6+Ground	Insert without Contacts	Crimp	Male	6B	16 A						Han® E	-40 C	200 °C

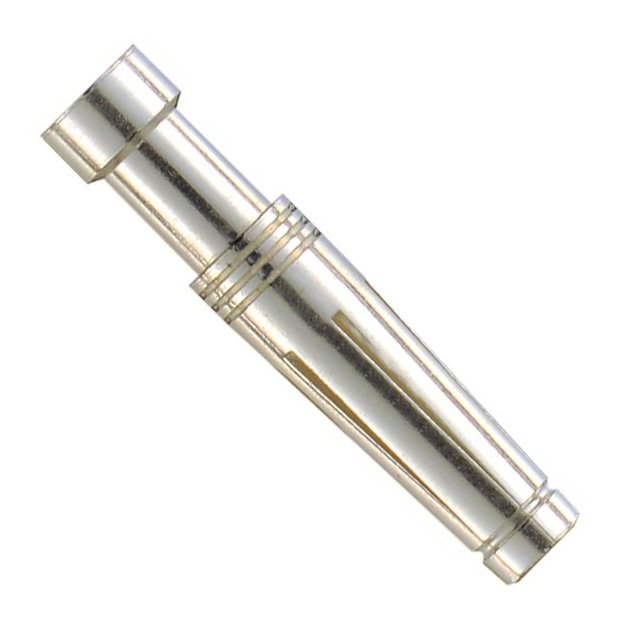

HARTING 09338006202									Silver	Machined	Crimp	Socket	14.5 AWG
HARTING 09338006204									Silver	Machined	Crimp	Socket	16 AWG
