HS2P7F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT FMALE 7POS GOLD SOLDER
| Part | Contact Finish - Mating | Applications | Primary Material | Voltage Rating | Contact Material | Ingress Protection | Mounting Type | Shell Material | Shielding | Connector Type | Fastening Type | Shell Finish | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Insert Material | Orientation | Termination | Mounting Feature | Color | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

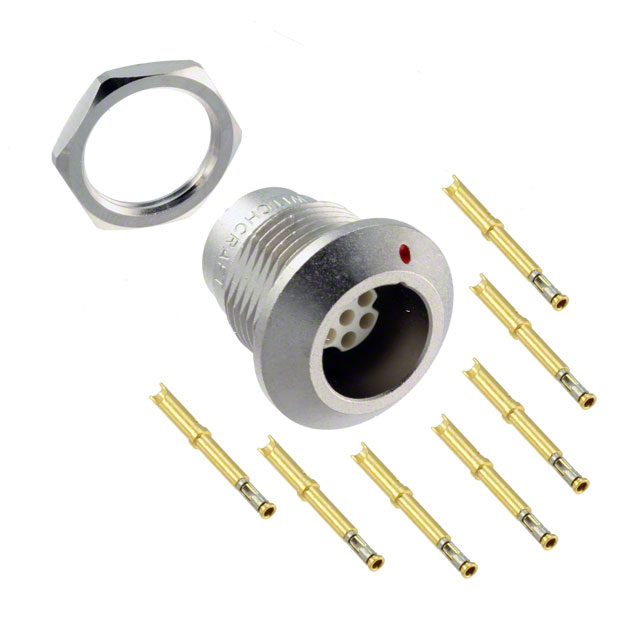

 Switchcraft Inc. | Gold | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | 30 VAC | Copper Alloy | IP66 IP67 IP68 | Panel Mount Through Hole | Copper Alloy | Shielded | Receptacle Female Sockets | Push-Pull | Electroless Nickel | 135 °C | -40 °C | 7 | Liquid Crystal Polymer (LCP) | Keyed | Solder | Bulkhead - Front Side Nut | Silver | |

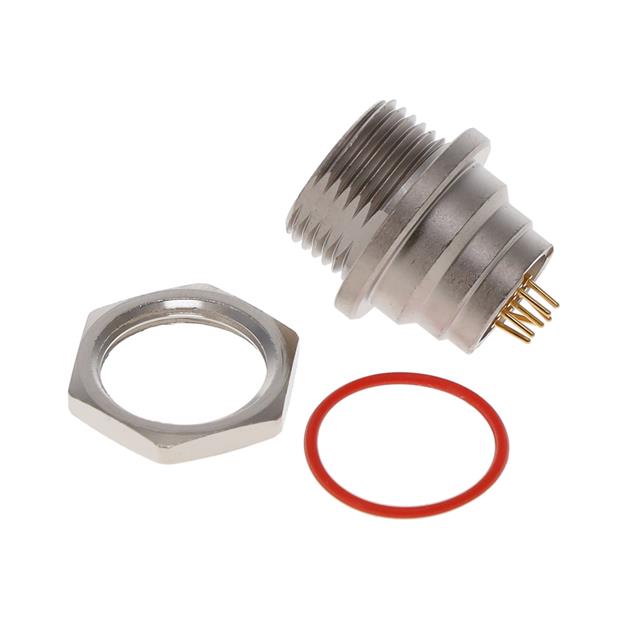

 Switchcraft Inc. | Gold | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | 30 VAC | Copper Alloy | IP66 IP67 IP68 | Copper Alloy | Shielded | Receptacle Female Sockets | Push-Pull | Electroless Nickel | 135 °C | -40 °C | 7 | Liquid Crystal Polymer (LCP) | Keyed | Crimp Solder Cup | Bulkhead - Rear Side Nut | Silver | UL94 HF-1 | |

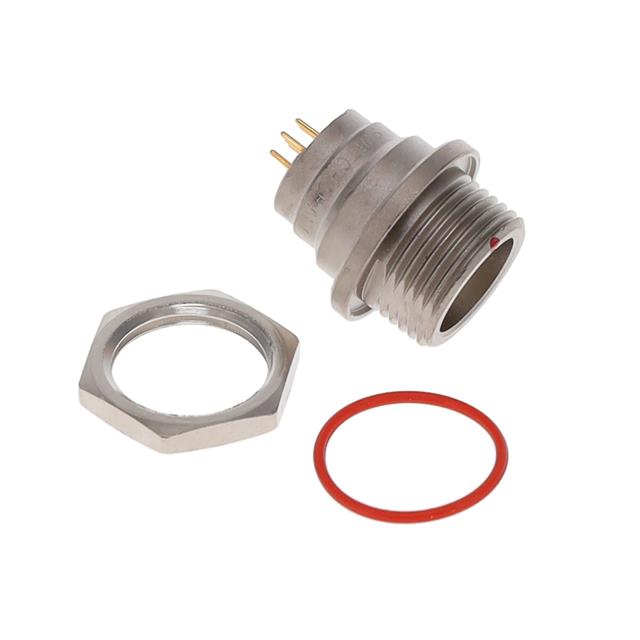

 Switchcraft Inc. | Gold | Agriculture Audio General Medical Testing Equipment & Measurement | Metal | 30 VAC | Copper Alloy | IP66 IP67 IP68 | Panel Mount Through Hole | Copper Alloy | Shielded | Receptacle Female Sockets | Push-Pull | Electroless Nickel | 135 °C | -40 °C | 7 | Liquid Crystal Polymer (LCP) | Keyed | Solder | Bulkhead - Front Side Nut | Silver |
