39S132 Series
Manufacturer: Rosenberger
Beta
⌘K
ADAPT SMA PLUG - SMC PLUG
| Part | Body Finish | Operating Temperature [Max] | Operating Temperature [Min] | Body Material | Center Contact Material | Dielectric Material | Mating Cycles | Fastening Type | Mounting Type | Convert From (Adapter End) | Center Gender | Adapter Series | Center Contact Plating | Frequency - Max [Max] | Style | Convert To (Adapter End) | Conversion Type | Adapter Type | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

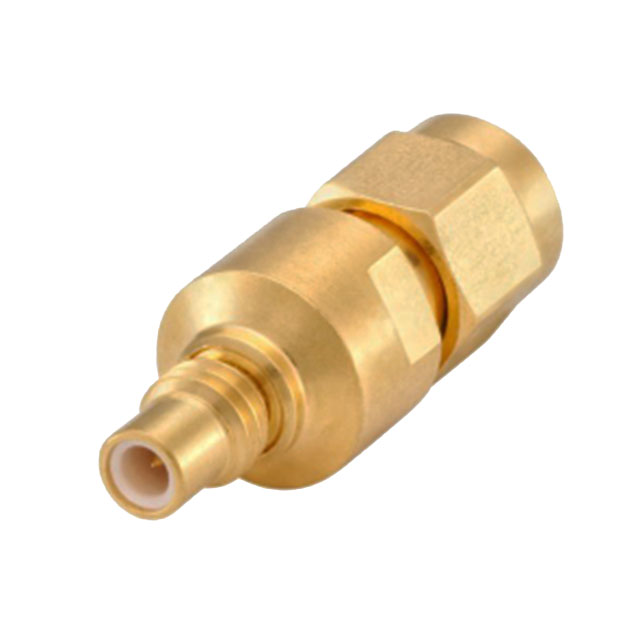

 Rosenberger | Gold | 155 C | -55 C | Beryllium Copper Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | Snap-On Threaded | Free Hanging (In-Line) | SMC Plug Male Pin | Male to Male | SMA to SMC | Gold | 6000 MHz | Straight | SMA Plug Male Pin | Between Series | Plug to Plug | 50 Ohms |

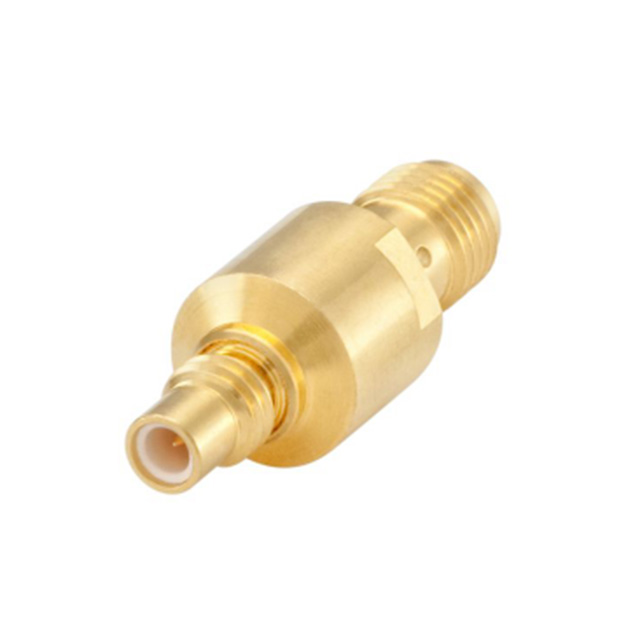

 Rosenberger | Gold | 155 C | -55 C | Beryllium Copper Brass | Beryllium Copper | Polytetrafluoroethylene (PTFE) | 500 | Snap-On Threaded | Free Hanging (In-Line) | Female Socket SMA Jack | SMA to SMC | Gold | 6000 MHz | Straight | SMC Plug Male Pin | Between Series | Plug to Jack | 50 Ohms |
