RC3-6 Series

Catalog

TEM 20.1X20.1X3.91MM

Part	Type	Delta Tmax @ Th	Current - Max [Max]	Qmax @ Th	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Number of Stages	Resistance	Features	Voltage - Max [Max]

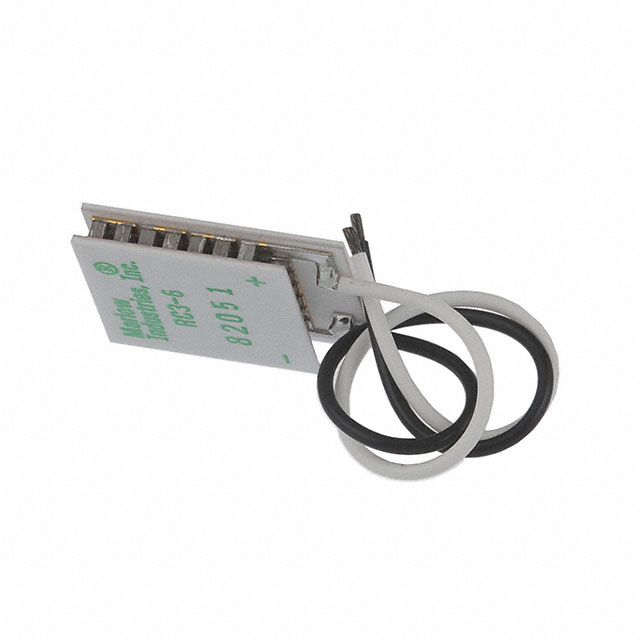

Marlow Industries, Inc. RC3-6-01	TEC (Thermoelectric Cooler)	65 °C	5.6 A	13 W	4.01 mm	24.6 mm	20.1 mm	130 °C	1	500 mOhms	Lead Wires	3.6 V

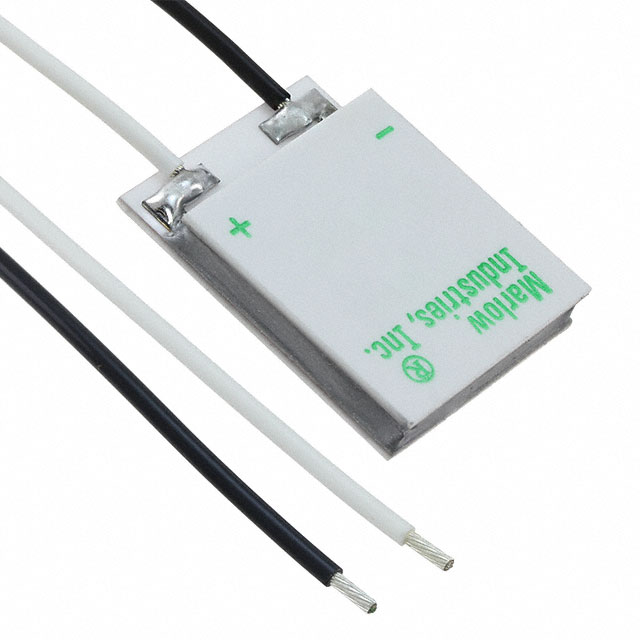

Marlow Industries, Inc. RC3-6-01LS	TEC (Thermoelectric Cooler)	65 °C	5.6 A	13 W	3.91 mm	24.6 mm	20.1 mm	130 °C	1	500 mOhms	Lapped Lead Wires Sealed	3.6 V

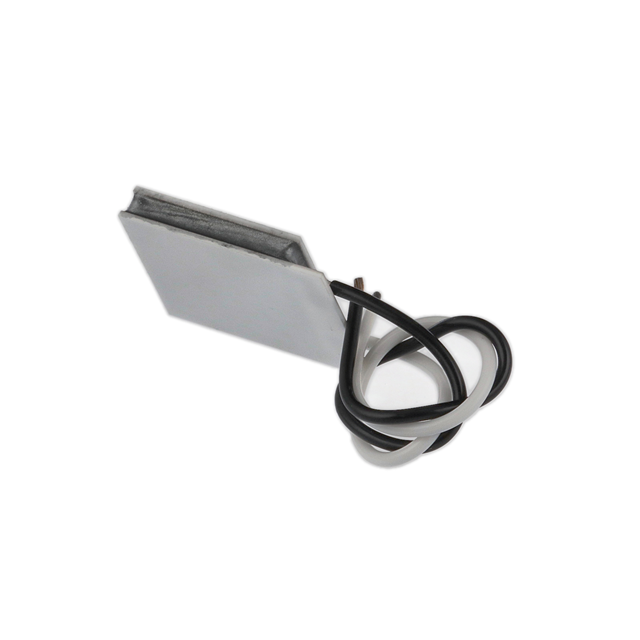

Marlow Industries, Inc. RC3-6-01S	TEC (Thermoelectric Cooler)	65 °C	5.6 A	13 W	4.01 mm	24.6 mm	20.1 mm	130 °C	1	500 mOhms	Lead Wires Sealed	3.6 V

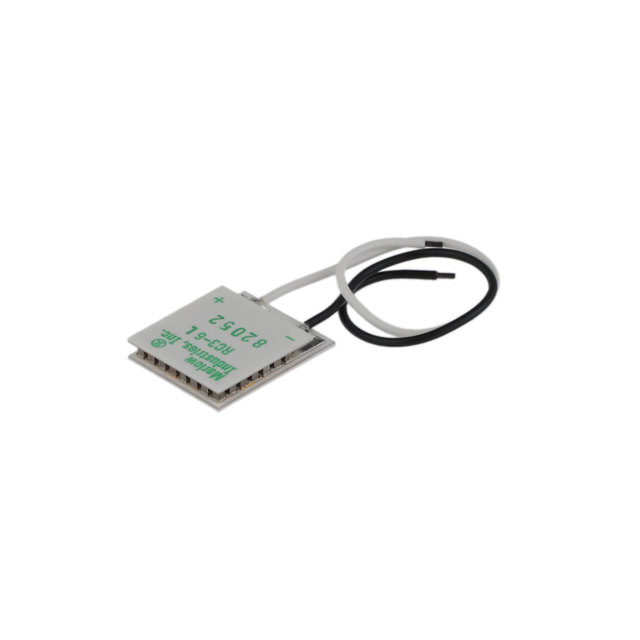

Marlow Industries, Inc. RC3-6-01L	TEC (Thermoelectric Cooler)	65 °C	5.6 A	13 W	3.91 mm	24.6 mm	20.1 mm	130 °C	1	500 mOhms	Lapped Lead Wires	3.6 V
