051146 Series

Manufacturer: Molex

Catalog

CONN HOUSING RCP 9 POS 1.25MM CRIMP ST CABLE MOUNT NATURAL PANELMATE™ BAG

Part	Contact Termination	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Color	Contact Type	Connector Type	Insulation Material	Mounting Type	Number of Rows	Fastening Type	Number of Positions	Note
Molex 0511460900	Crimp	85 °C	-40 °C	0.049 in	1.25 mm	Natural	Female Socket	Receptacle	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	Friction Lock	9	Contacts Not Included
Molex 0511463000	Crimp			0.049 in	1.25 mm	Natural	Female Socket	Receptacle		Free Hanging (In-Line)	1	Friction Lock	30	Contacts Not Included

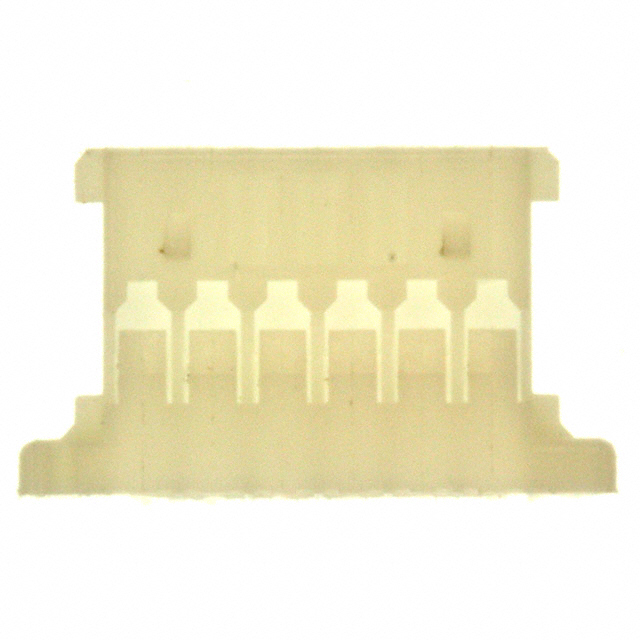

Molex 0511460600	Crimp	85 °C	-40 °C	0.049 in	1.25 mm	Natural	Female Socket	Receptacle	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	Friction Lock	6	Contacts Not Included

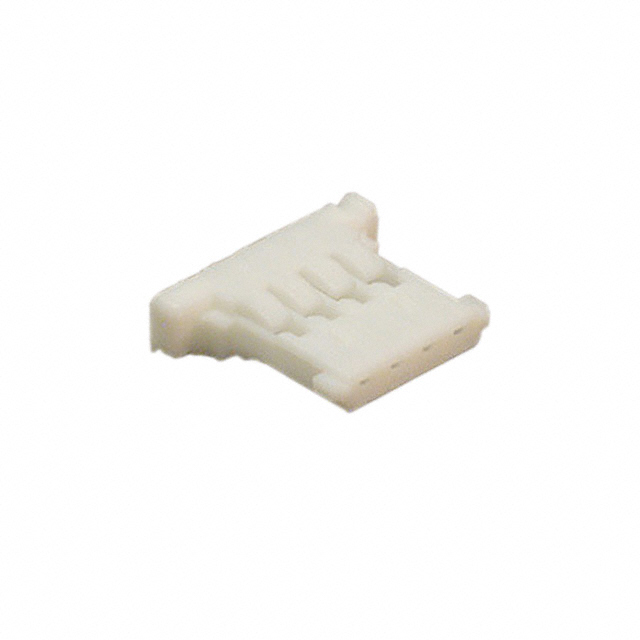

Molex 0511460400	Crimp			0.049 in	1.25 mm	Natural	Female Socket	Receptacle		Free Hanging (In-Line)	1	Friction Lock	4	Contacts Not Included
Molex 0511460500	Crimp	85 °C	-40 °C	0.049 in	1.25 mm	Natural	Female Socket	Receptacle	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	1	Friction Lock		Contacts Not Included

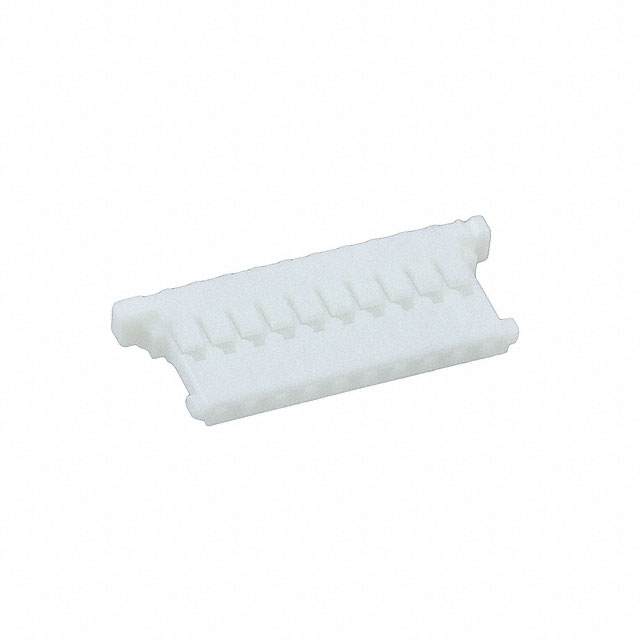

Molex 0511461000	Crimp			0.049 in	1.25 mm	Natural	Female Socket	Receptacle		Free Hanging (In-Line)	1	Friction Lock	10	Contacts Not Included

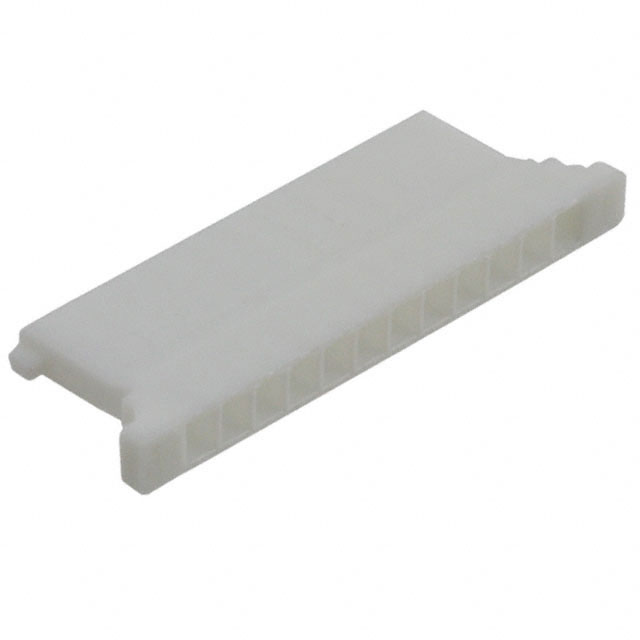

Molex 0511461200	Crimp			0.049 in	1.25 mm	Natural	Female Socket	Receptacle		Free Hanging (In-Line)	1	Friction Lock	12	Contacts Not Included
Molex 0511461800	Crimp			0.049 in	1.25 mm	Natural	Female Socket	Receptacle		Free Hanging (In-Line)	1	Friction Lock	18	Contacts Not Included
