200MSP3 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Actuator Material	Electrical Life (Cycles)	Features	Actuator Type	Mounting Type	Illumination	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Bushing Thread	Current Rating	Circuit	Switch Function	Voltage Rating - DC	Actuator Length	Panel Cutout Diameter	Panel Cutout Shape
E-Switch 200MSP3T1B2M6RE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Right Angle Through Hole	Non-Illuminated	20 V	85 °C	-30 °C	PC Pin	Unthreaded	0.4 VA	SPDT	On-Off-On	20 V	9.4 mm
E-Switch 200MSP3T2B2M7QE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Right Angle Through Hole Vertical	Non-Illuminated	120 V	85 °C	-30 °C	PC Pin	Unthreaded	3 A	SPDT	On-Off-On	28 V	5.33 mm
E-Switch 200MSP3T21B3M6QEH	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals		Panel Mount Right Angle	Non-Illuminated	120 V	85 °C	-30 °C	PC Pin	10-48	3 A	SPDT	On-Off-On	28 V		4.95 mm	Circular
E-Switch 200MSP3T1B2M2QE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Through Hole	Non-Illuminated	120 V	85 °C	-30 °C	PC Pin	Unthreaded	3 A	SPDT	On-Off-On	28 V	9.4 mm
E-Switch 200MSP3T2B3M7QE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Panel Mount Right Angle Vertical	Non-Illuminated	120 V	85 °C	-30 °C	PC Pin	10-48	3 A	SPDT	On-Off-On	28 V	5.33 mm	4.95 mm	Circular
E-Switch 200MSP3T2B4M2RE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Through Hole	Non-Illuminated	20 V	85 °C	-30 °C	PC Pin	Unthreaded	0.4 VA	SPDT	On-Off-On	20 V	5.33 mm
E-Switch 200MSP3T2B3M7RE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Panel Mount Right Angle Vertical	Non-Illuminated	20 V	85 °C	-30 °C	PC Pin	10-48	0.4 VA	SPDT	On-Off-On	20 V	5.33 mm	4.95 mm	Circular

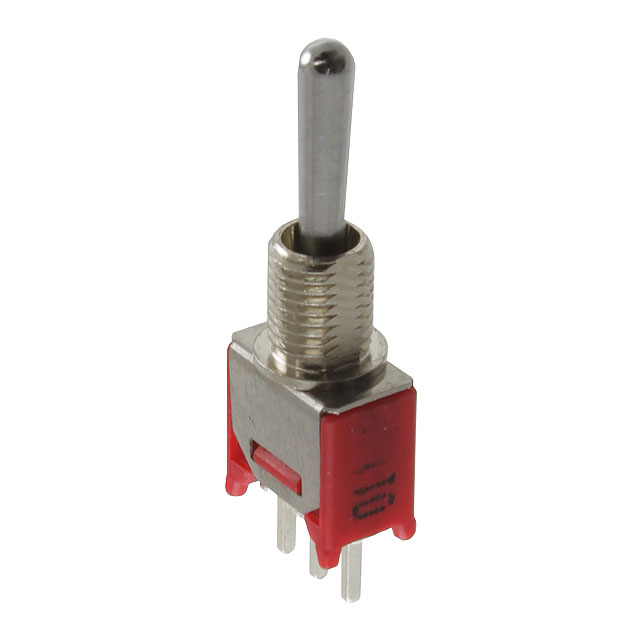

E-Switch 200MSP3T1B1M2QE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Panel Mount	Non-Illuminated	120 V	85 °C	-30 °C	PC Pin	10-48	3 A	SPDT	On-Off-On	28 V	9.4 mm	4.95 mm	Circular

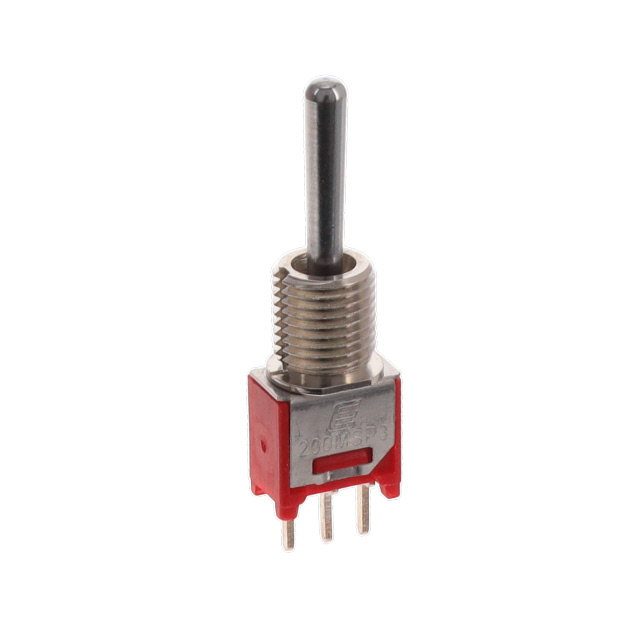

E-Switch 200MSP3T4B7M2QE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Panel Mount	Non-Illuminated	120 V	85 °C	-30 °C	PC Pin	1/4-40	3 A	SPDT	On-Off-On	28 V	11.68 mm	0.25 "	Circular
E-Switch 200MSP3T4B5M6RE	Brass Chrome Plated	30000 Cycles	Epoxy Sealed Terminals	Standard Round	Panel Mount Right Angle	Non-Illuminated	20 V	85 °C	-30 °C	PC Pin	1/4-40	0.4 VA	SPDT	On-Off-On	20 V	10.41 mm	0.25 "	Circular
