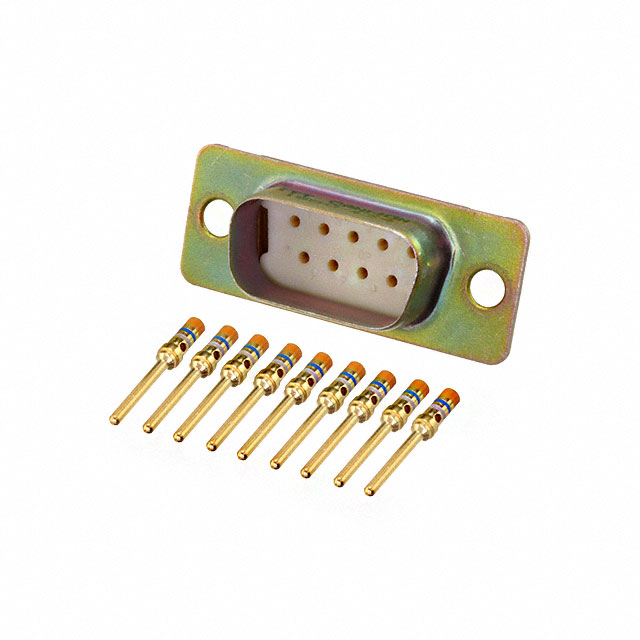

M24308/4 Series

Catalog

D SUB CONNECTOR, HIGH DENSITY, PLUG, MIL-DTL-24308 SERIES, 26 CONTACTS, DA, CRIMP

Part	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Flange Feature	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Current Rating (Amps)	Features	Number of Positions	Termination	Number of Rows [custom]	Connector Style	Mounting Type	Shell Material, Finish	Mating Cycles	Note	Shell Material, Finish [custom]	Shell Material, Finish [custom]	Shell Size, Connector Layout [x]	Color	Shell Size, Connector Layout	Shell Size, Connector Layout [custom]
ITT Cannon, LLC M24308/4-12F	Thermoplastic	-55 C	150 °C	Plug Male Pins	Housing/Shell (Unthreaded)	Gold	50 µin	1.27 µm	Signal	2	DA A	7.5 A	Shielded	26	Crimp	3	D-Sub High Density	Panel Mount	Steel Yellow Chromate Plated Cadmium

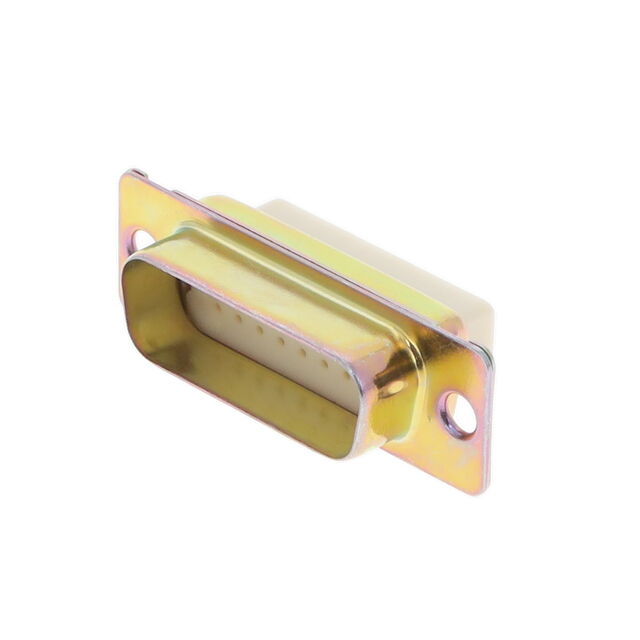

ITT Cannon, LLC M24308/4-265Z	Thermoplastic	-55 C	150 °C	Plug for Male Contacts	Housing/Shell (Unthreaded)				Signal	2	DA A			26		3	D-Sub High Density	Free Hanging (In-Line)		500	Contacts Not Included	Yellow Chromate Plated Zinc	Steel

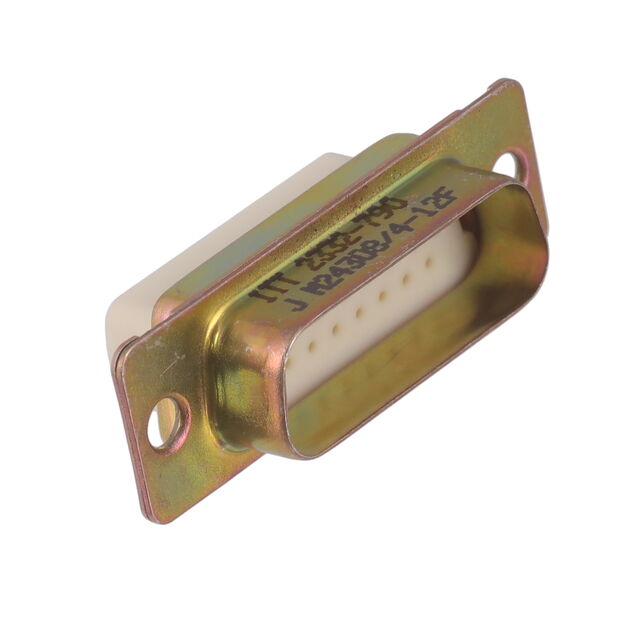

ITT Cannon, LLC M24308/4-265F	Thermoplastic	-55 C	150 °C	Plug for Male Contacts	Housing/Shell (Unthreaded)				Signal	2	DA A			26		3	D-Sub High Density	Free Hanging (In-Line)	Steel Yellow Chromate Plated Cadmium	500	Contacts Not Included

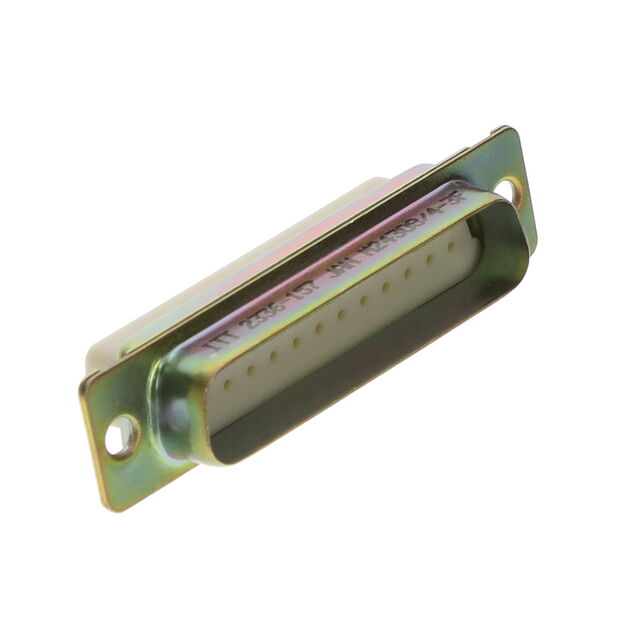

ITT Cannon, LLC M24308/4-261F	Thermoplastic	-55 C	150 °C	Plug for Male Contacts	Housing/Shell (Unthreaded)				Signal		B DB			25		2	D-Sub	Free Hanging (In-Line)	Steel Yellow Chromate Plated Cadmium	500	Contacts Not Included			3

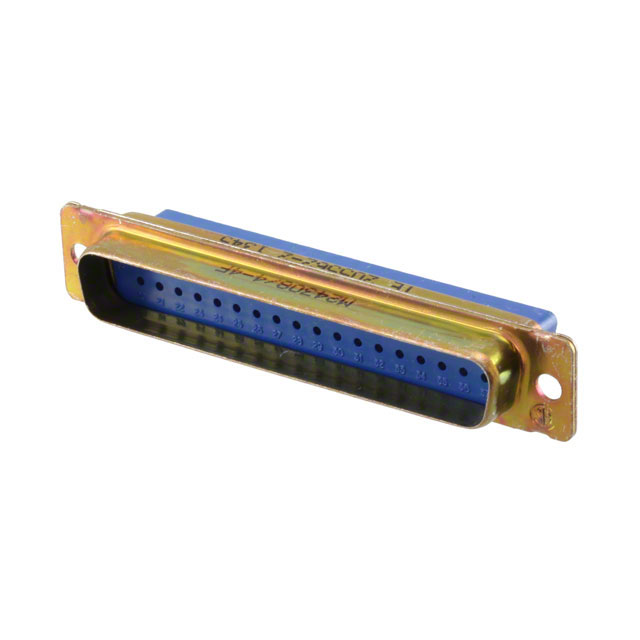

ITT Cannon, LLC M24308/4-262F	Thermoplastic	-55 C	125 °C	Plug for Male Contacts	Housing/Shell (Unthreaded)				Signal		DC C			37		2	D-Sub	Free Hanging (In-Line) Panel Mount	Steel Yellow Chromate Plated Cadmium	500	Contacts Not Included				Black	4
ITT Cannon, LLC M24308/4-455F
ITT Cannon, LLC M24308/4-464F	Thermoplastic	-55 C	125 °C	Plug for Male Contacts	Housing/Shell (Unthreaded)				Signal					44		3	D-Sub High Density	Free Hanging (In-Line) Panel Mount	Steel Yellow Chromate Plated Cadmium	500	Contacts Not Included				Black	3

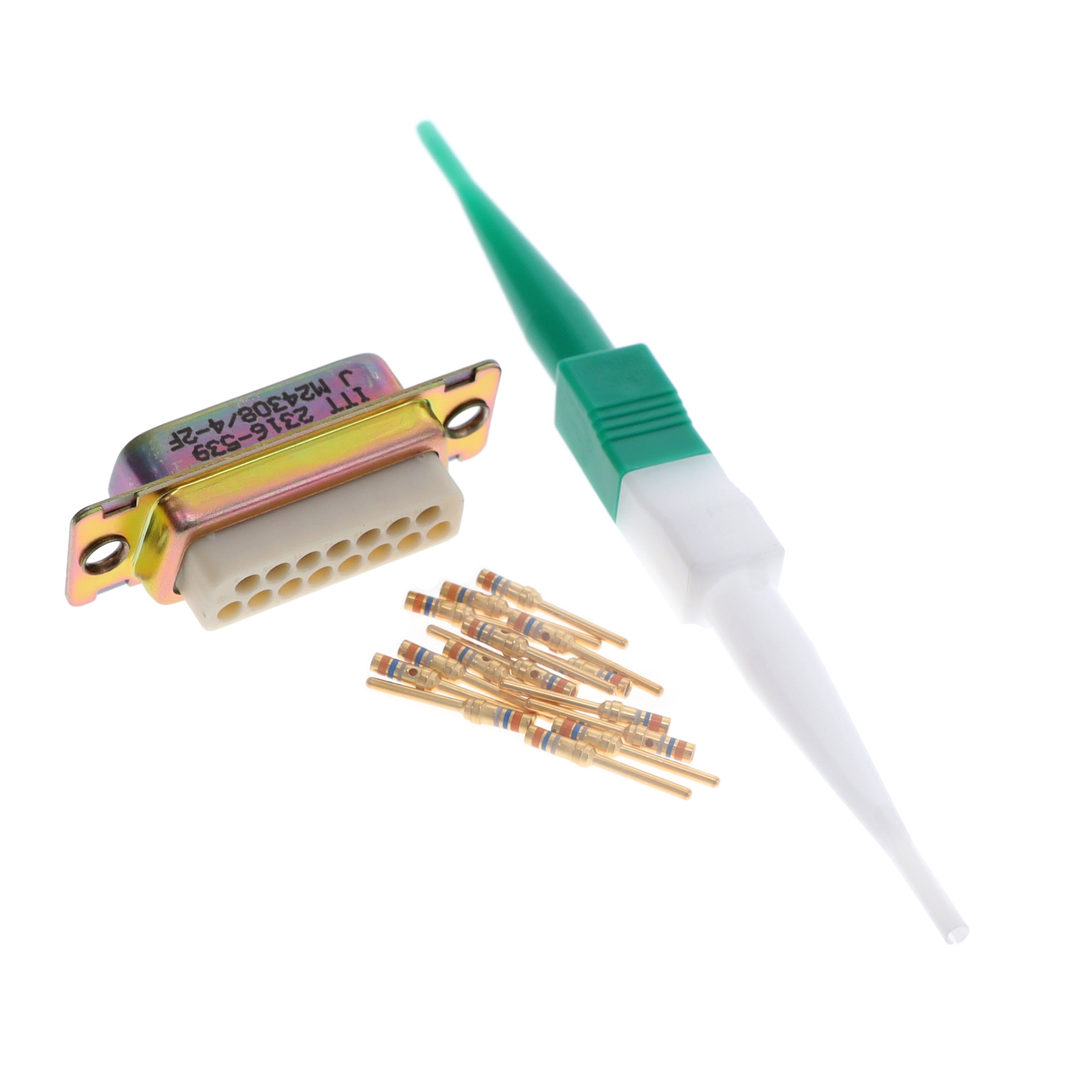

ITT Cannon, LLC M24308/4-7F	Thermoplastic	-55 C	150 °C	Plug Male Pins	Cable Side (M3)	Gold	50 µin	1.27 µm	Signal			7.5 A	Shielded	15	Crimp	2	D-Sub	Panel Mount	Steel Yellow Chromate Plated Cadmium							2
ITT Cannon, LLC M24308/4-440Z	Thermoplastic	-55 C	150 °C	Plug Male Pins	Housing/Shell (Unthreaded)	Gold			Signal			7.5 A		15	Crimp			Panel Mount							Black

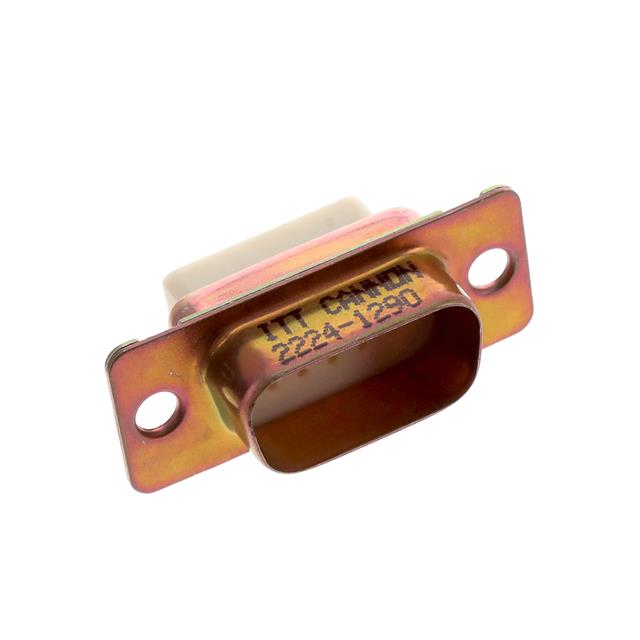

ITT Cannon, LLC M24308/4-264F	Thermoplastic	-55 C	150 °C	Plug for Male Contacts	Housing/Shell (Unthreaded)				Signal	1				15		3	D-Sub High Density	Free Hanging (In-Line)	Brass Yellow Chromate Plated Cadmium	500	Contacts Not Included						(DE E) High Density
