0929-7 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

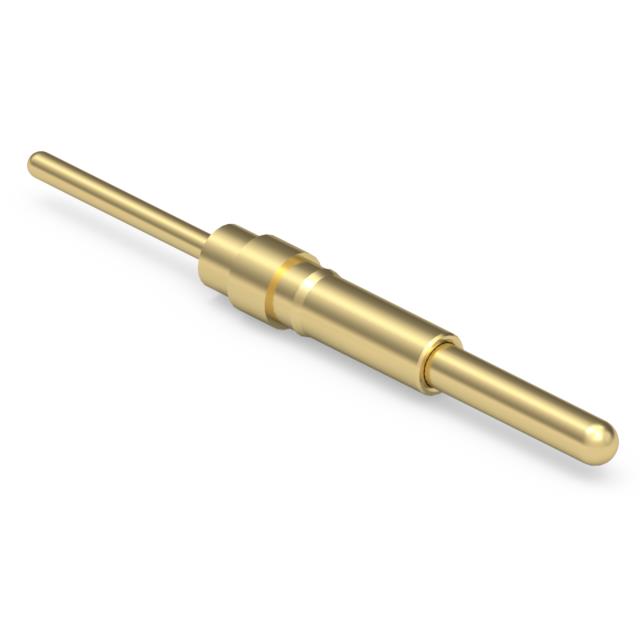

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Pad Layout Dimension | Pad Layout Dimension | Minimum Working Height | Minimum Working Height | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Operating Force - Mid Compression | Mounting Type | Operating Force - Initial | Recommended Working Height | Recommended Working Height | Mating Cycles | Plunger Size [diameter] | Plunger Size [diameter] | Current Rating (Amps) | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | 0.072 in | 1.83 mm | 10.8 mm | 0.425 in | 20 µin | 0.51 µm | Gold | 60 gf | Through Hole | 10 gf | 0.453 in | 11.5 mm | 1000000 | 0.042 in | 1.07 mm | 5.2 A | Sleeve & Plunger (Pogo Pins) |
