LQB15NN Series

Catalog

FIXED IND 390NH 300MA 675MOHM SM

Part	Tolerance	Shielding	Package / Case	Inductance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Q @ Freq	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	DC Resistance (DCR) [Max]	Inductance Frequency - Test	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Frequency - Self Resonant	Type	Supplier Device Package	Material - Core	DC Resistance (DCR)

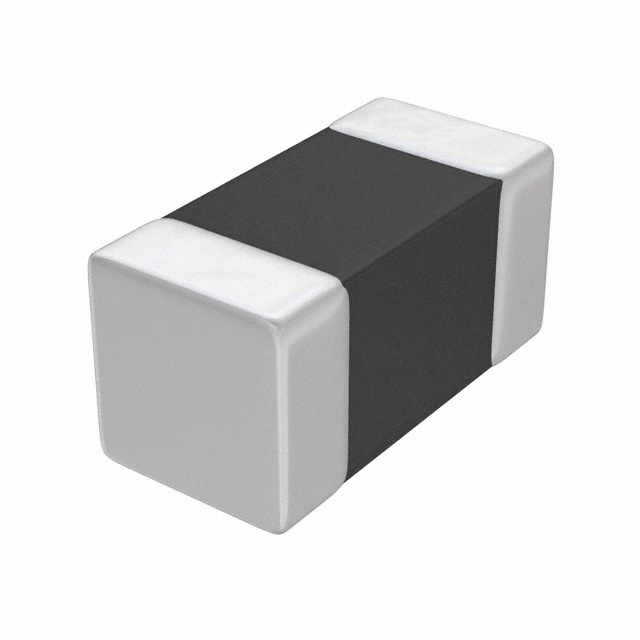

Murata Power Solutions Inc. LQB15NNR39K10D	10 %	Shielded	0402 (1005 Metric)	390 nH	1 mm	0.02 in	0.5 mm	0.039 in	10 25 MHz	Surface Mount	0.022 in	0.55 mm	675 mOhm	25 MHz	-55 °C	125 °C	300 mA	80 MHz	Multilayer	0402 (1005 Metric)	Ferrite
Murata Power Solutions Inc. LQB15NNR22J10D	5 %	Shielded	0402 (1005 Metric)	220 nH	1 mm	0.02 in	0.5 mm	0.039 in	10 25 MHz	Surface Mount	0.022 in	0.55 mm		25 MHz	-55 °C	125 °C	0.38 A	80 MHz	Multilayer	0402 (1005 Metric)	Ferrite	437.5 mOhm
Murata Power Solutions Inc. LQB15NNR47J10D	5 %	Shielded	0402 (1005 Metric)	470 nH	1 mm	0.02 in	0.5 mm	0.039 in	10 25 MHz	Surface Mount	0.022 in	0.55 mm	800 mOhm	25 MHz	-55 °C	125 °C	300 mA	80 MHz	Multilayer	0402 (1005 Metric)	Ferrite
