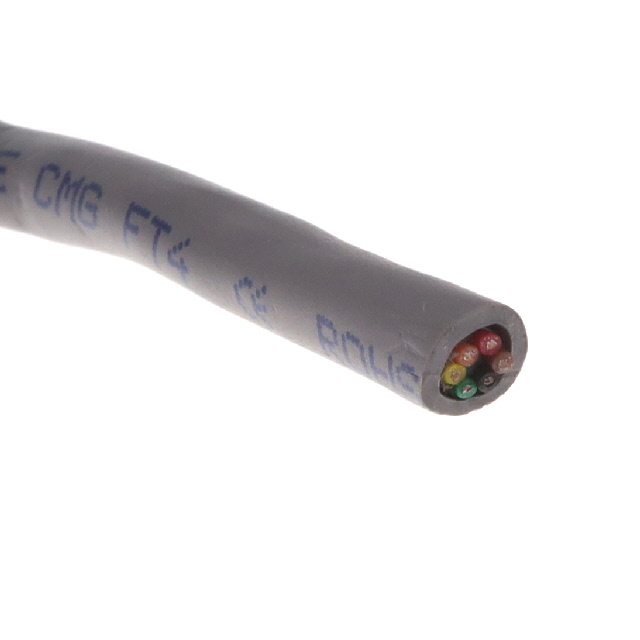

5929 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
XTRA-GUARD 1 /1000 FT /EACH
| Part | Shield Material | Shield Coverage | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Voltage | Number of Conductors | Ratings | Cable Type | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Conductor Insulation | Shield Type | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Features | Jacket (Insulation) Material | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 304.8 m | 1000 ft | -35 °C | 105 ░C | 0.813 mm | 0.032 in | 28 AWG | 300 VDC | 6 | ISO 10993 UL Style 2464 | Multi-Conductor | Copper Tinned | 7 | 36 AWG | Slate | Poly-Vinyl Chloride (PVC) | Foil | 4.52 mm | 0.178 in | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Communication Control |
ALPHA WIRE | Aluminum | 100 % | -35 °C | 105 ░C | 0.813 mm | 0.032 in | 28 AWG | 300 VDC | 6 | ISO 10993 UL Style 2464 | Multi-Conductor | Copper Tinned | 7 | 36 AWG | Slate | Poly-Vinyl Chloride (PVC) | Foil | 4.52 mm | 0.178 in | Biological Compatibility Drain Wire Rip Cord | Poly-Vinyl Chloride (PVC) | Communication Control |
