LHS-04 Series
Manufacturer: Adam Tech
Beta
⌘K

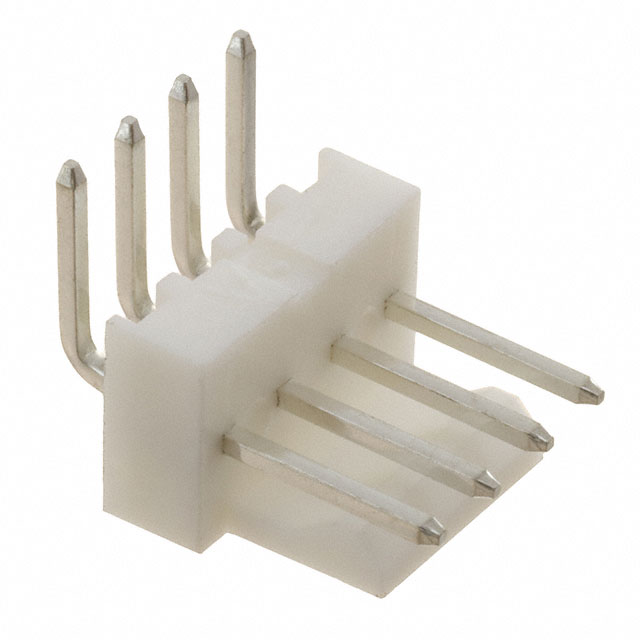

CONN HEADER R/A 4POS 2.54MM
| Part | Shrouding | Contact Length - Mating | Contact Length - Mating | Insulation Color | Number of Rows | Material Flammability Rating | Style | Contact Shape | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Contact Type | Termination | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Fastening Type | Number of Positions | Contact Material | Voltage Rating | Insulation Height [z] | Insulation Height [z] | Insulation Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Adam Tech | Shrouded - 1 Wall | 6.7 mm | 0.264 in | White | 1 | UL94 V-0 | Board to Cable/Wire | Square | Tin | 0.1 " | 2.54 mm | All | 3 A | 0.13 " | 3.3 mm | Male Pin | Solder | Header | 85 °C | -25 °C | Right Angle Through Hole | Friction Lock | 4 | Brass | 250 VAC | 0.252 " | 6.4 mm | Nylon 6/6 Polyamide (PA66) |
