05FMN-SM Series

Catalog

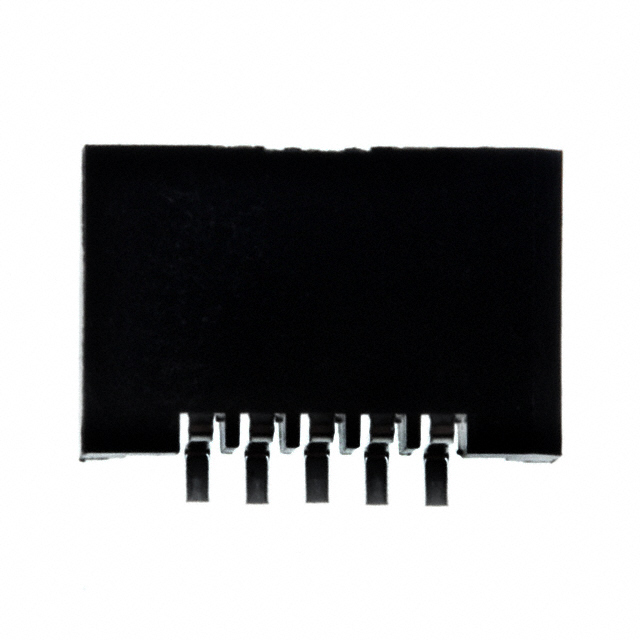

CONN FFC TOP 5POS 1MM R/A

Part	Housing Color	Current Rating (Amps)	Termination	Pitch	Pitch	Material Flammability Rating	Height Above Board [z]	Height Above Board [z]	Housing Material	FFC, FCB Thickness	Cable End Type	Flat Flex Type	Voltage Rating	Contact Finish	Contact Material	Connector/Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Positions	Features
JST Sales America Inc. 05FMN-SMT-A-TF	Black	0.5 A	Solder	1 mm	0.039 in	UL94 V-0	0.118 in	3 mm	Nylon 6T Polyamide (PA6T)	0.3 mm	Straight	FFC	50 V	Tin	Phosphor Bronze	Contacts Top	85 °C	-25 °C	Right Angle Surface Mount	5	Low Insertion Force (LIF)
