M4634 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

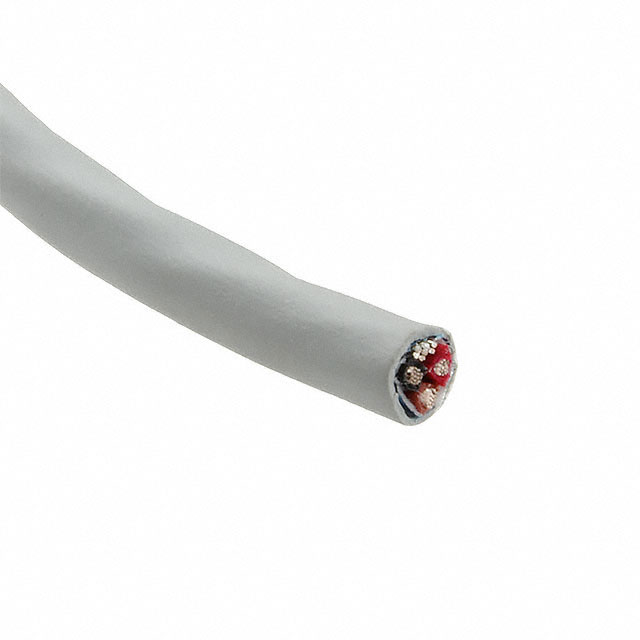

CABLE 3COND 22AWG SLATE SHLD
| Part | Shield Coverage | Shield Material | Number of Conductors | Cable Type | Wire Gauge | Length | Length | Conductor Material | Voltage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Conductor Insulation | Shield Type | Features | Operating Temperature [Max] | Operating Temperature [Min] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 3 | Multi-Conductor | 22 AWG | 152.4 m | 500 ft | Copper Tinned | 300 VDC | 4.55 mm | 0.179 " | 28 AWG | 7 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire Rip Cord | 80 °C | -20 ░C | Slate | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 100 % | Aluminum | 3 | Multi-Conductor | 22 AWG | 304.8 m | 1000 ft | Copper Tinned | 300 VDC | 4.55 mm | 0.179 " | 28 AWG | 7 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire Rip Cord | 80 °C | -20 ░C | Slate | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | 100 % | Aluminum | 3 | Multi-Conductor | 22 AWG | Copper Tinned | 300 VDC | 4.55 mm | 0.179 " | 28 AWG | 7 | UL Style 2464 | Poly-Vinyl Chloride (PVC) | Foil | Drain Wire Rip Cord | 80 °C | -20 ░C | Slate | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
