EGG.0T Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 9P GOLD SLDR CUP

Part	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Material Flammability Rating	Orientation [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material	Mounting Type	Connector Type	Ingress Protection	Current Rating (Amps)	Shielding	Contact Material	Insert Material	Shell Size - Insert	Primary Material	Contact Finish - Mating	Number of Positions	Shell Finish	Shell Size - Insert [custom]
LEMO EGG.0T.309.KLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Black	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	2 A	Shielded	Bronze	Polyetheretherketone (PEEK)	309	Metal	Gold	9

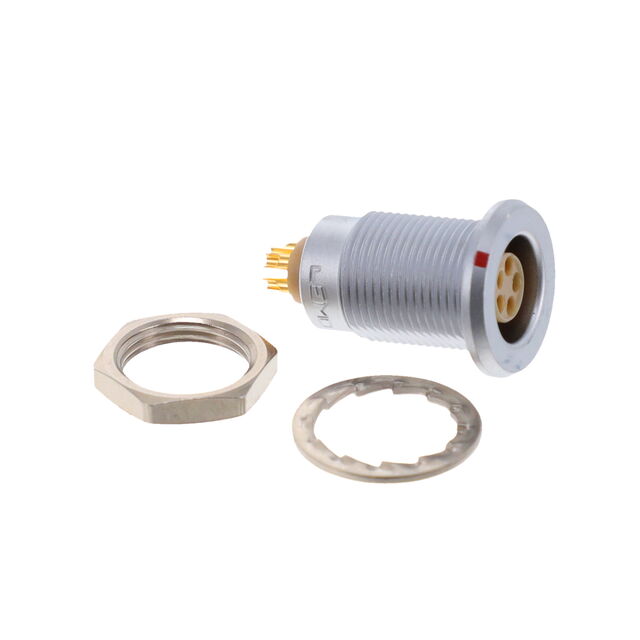

LEMO EGG.0T.305.CLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Silver	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	6.5 A	Shielded	Bronze	Polyetheretherketone (PEEK)	305	Metal	Gold	5	Chrome

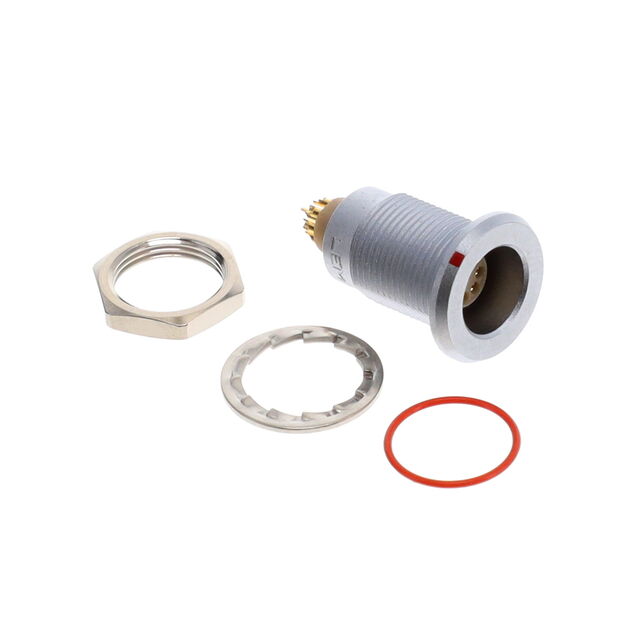

LEMO EGG.0T.309.CLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Silver	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	2 A	Shielded	Bronze	Polyetheretherketone (PEEK)	309	Metal	Gold	9	Chrome
LEMO EGG.0T.307.KLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Black	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	2.5 A	Shielded	Bronze	Polyetheretherketone (PEEK)		Metal	Gold	7		307

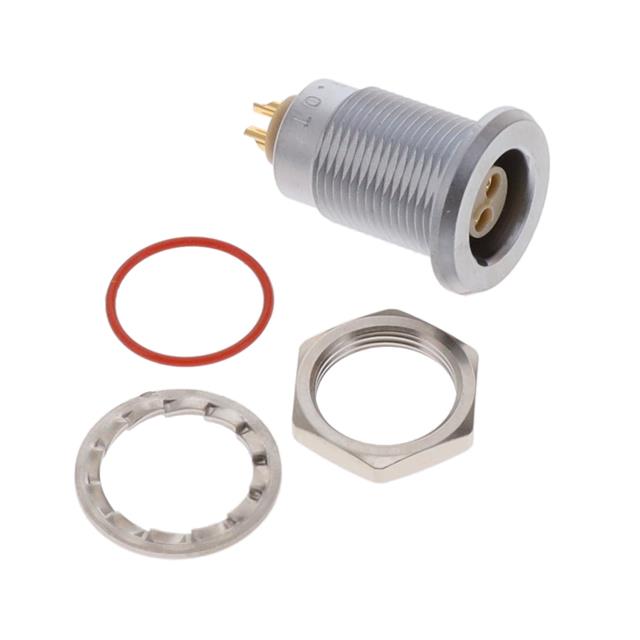

LEMO EGG.0T.302.CLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Silver	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	10 A	Shielded	Bronze	Polyetheretherketone (PEEK)	302	Metal	Gold	2	Chrome
LEMO EGG.0T.307.CLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Silver	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	2.5 A	Shielded	Bronze	Polyetheretherketone (PEEK)		Metal	Gold	7	Chrome	307

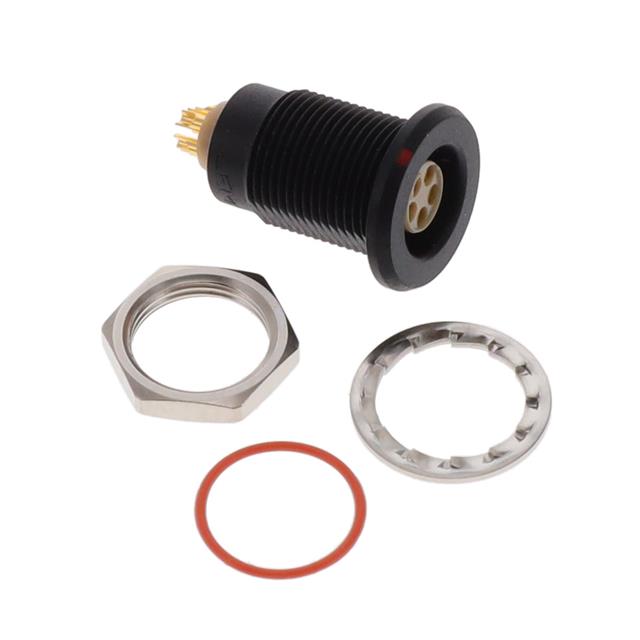

LEMO EGG.0T.305.KLL	Bulkhead - Rear Side Nut	59 Áin	1.5 Ám	Push-Pull	UL94 V-0	G	-55 C	200 °C	Black	Brass	Panel Mount	Receptacle Female Sockets	IP66 IP68	6.5 A	Shielded	Bronze	Polyetheretherketone (PEEK)	305	Metal	Gold	5
