FSG Series

Manufacturer: OptiFuse

Catalog

FUSE GLASS 10A 32VAC 32VDC 5AG

Part	Voltage Rating - DC	Approval Agency	Breaking Capacity @ Rated Voltage	Package / Case [y]	Package / Case [x]	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Current Rating (Amps)	Response Time	Fuse Type	Voltage Rating - AC	Mounting Type

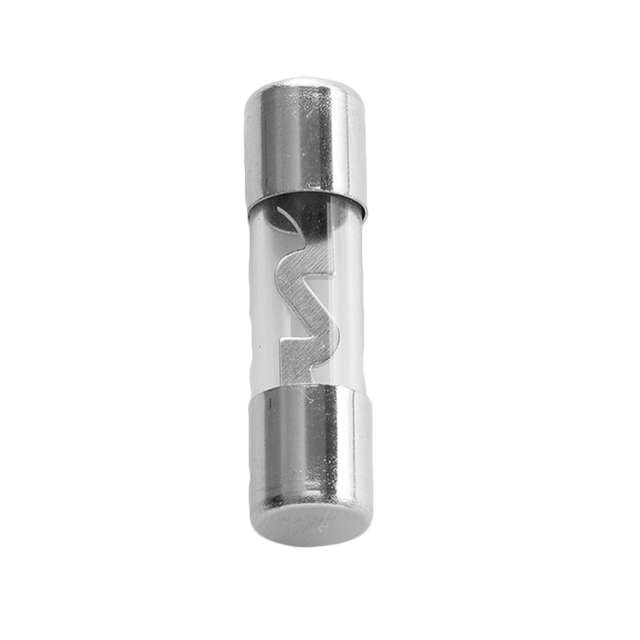

OptiFuse FSG-10A	32 V	cURus UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	10 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-2A	32 V	cULus UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	2 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-30A	32 V	cURus UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	30 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-G-50A	32 V	UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	50 A	Fast Blow	Automotive	32 V	Requires Holder
OptiFuse FSG-50A	32 V	UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	50 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-40A	32 V	UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	40 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-15A	32 V	cURus UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	15 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-20A	32 V	cURus UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	20 A	Fast Blow	Cartridge Glass	32 V	Requires Holder
OptiFuse FSG-G-40A	32 V	UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	40 A	Fast Blow	Automotive	32 V	Requires Holder

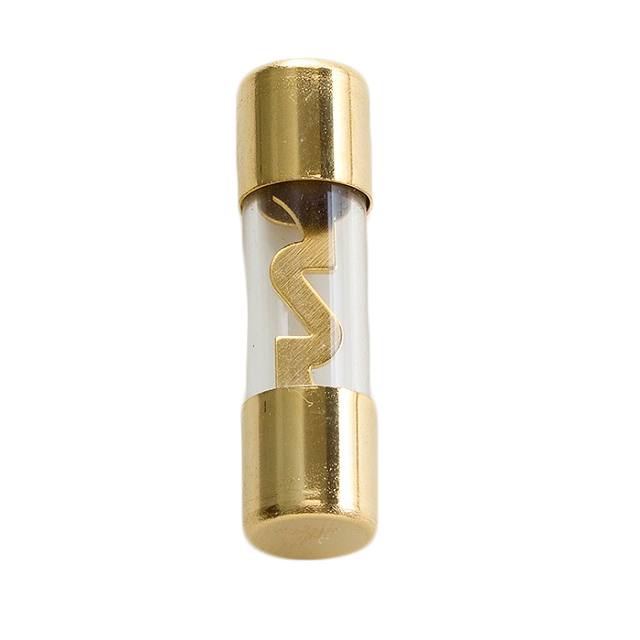

OptiFuse FSG-G-30A	32 V	UL 248	1 kA	38 mm	10 mm	5AG	1.5 in	38.1 mm	0.406 "	10.3 mm	30 A	Fast Blow	Automotive	32 V	Requires Holder
